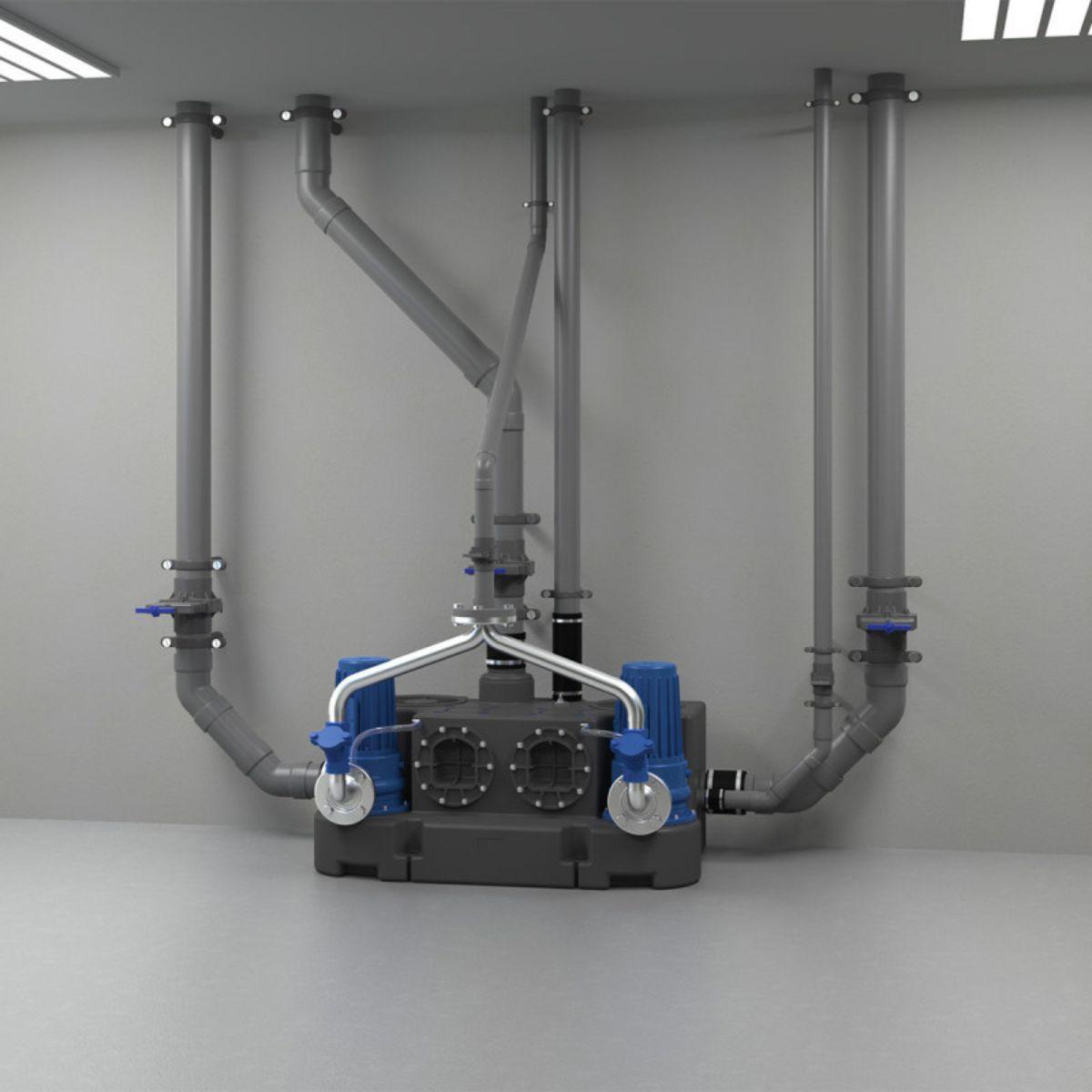

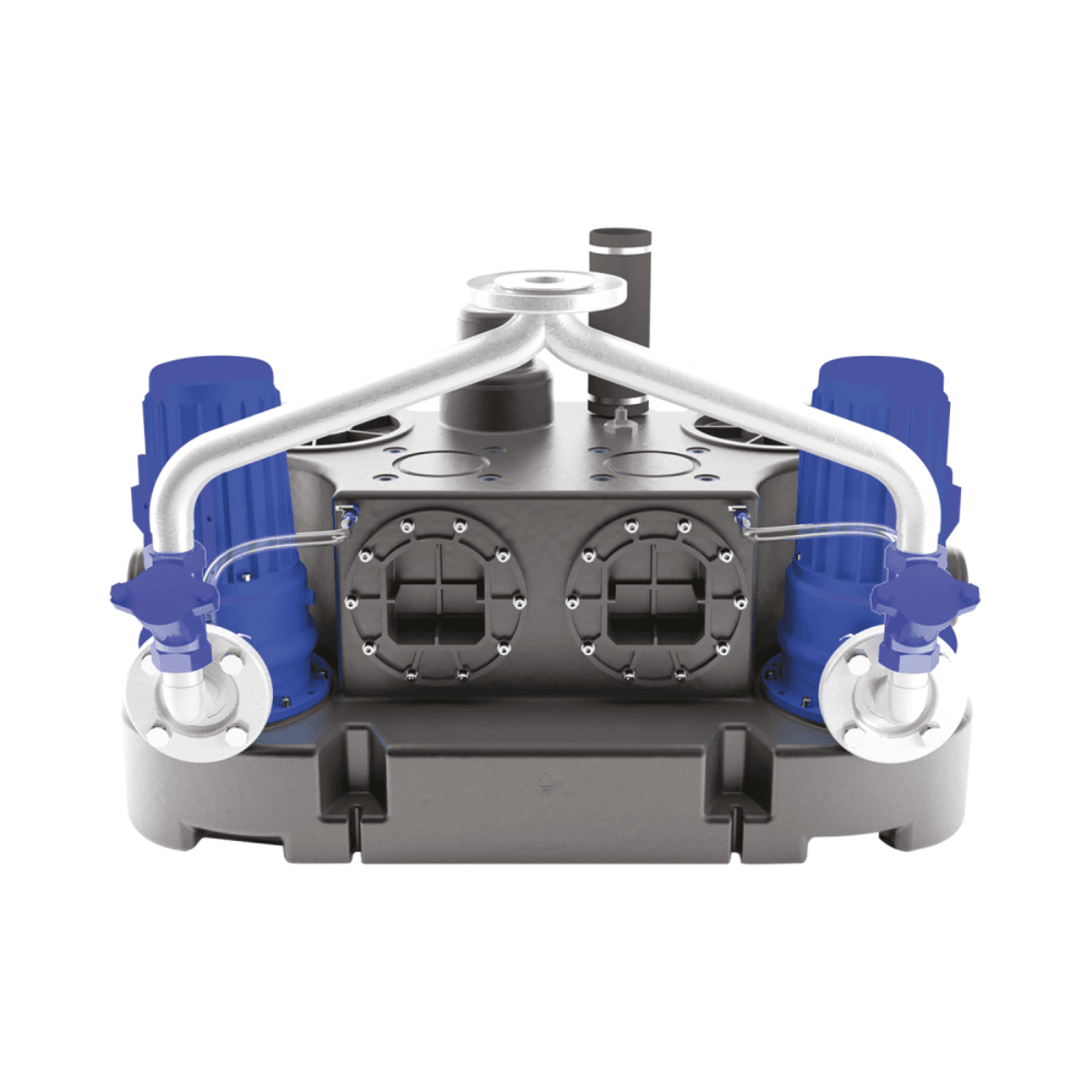

Three-Phase Pumping Station SFA Sanicubic 2 GR SE71.1 T

The SFA Sanicubic 2 GR SE71.1 T pumping station is a compact, high-performance professional solution designed to evacuate wastewater in both domestic and commercial environments. This model incorporates two three-phase cast iron grinder pumps, which work alternately to ensure continuous and efficient operation, reducing component wear and improving system reliability.

With a maximum head of 22 meters and a flow rate of up to 17 m³/h, this station is ideal for single-family homes, ground-floor apartments, small premises, or any installation requiring effective pumping with additional reserve capacity thanks to the alternating operation of its two motors. The pump features Pro X K3 blades, which effectively grind solid waste, preventing clogs and allowing the use of DN 50 discharge pipes.

The 150-liter tank, made of high-density polyethylene (PE LD), has multiple inlets: 3 at DN 100 and 2 at DN 50/100, a DN 50 discharge, and Ø75 mm ventilation. It also includes a ball check valve, connection fittings, and an external control panel ZPS 2 with acoustic and visual alarm, which monitors operation and alerts in case of failure or overflow.

The start and stop are controlled by a pneumatic detection system, offering greater reliability and lower maintenance than traditional sensors. This solution is ready for installation without the need to dig into the ground, facilitating its commissioning in renovation or refurbishment projects.

Included Components

• 150 L tank in PE LD
• 2 cast iron GG-20 grinder pumps with Pro X K3 blades
• 3 DN 100 inlets + 2 DN 50/100 inlets
• 1 DN 50 discharge and Ø75 mm ventilation
• External control panel ZPS 2 with sound and visual alarm
• Ball check valve + fittings included

Technical Specifications

• Motor type: Three-phase (400 V, 50-60 Hz)
• Absorbed power (P1): 2100 W (per pump)
• Useful power (P2): 1700 W (per pump)
• Operating mode: S3 25%
• Protection index: IP68
• Maximum head (HMT): 22 m
• Maximum flow rate: 17 m³/h
• Maximum pumped liquid temperature: 55 °C
• ON/OFF level: 140–250 mm / 30 mm
• Alarm level: 180–290 mm

Connections and Installation

• Inlets: 3 x DN 100 + 2 x DN 50/100
• Discharge: DN 50
• Ventilation: Ø75 mm
• Useful volume: 150 liters
• Detection type: Pneumatic
• Gross weight: 137 kg

Main Advantages

• Double grinder pump operating alternately
• Compact design and easy installation without the need for construction work
• High-altitude discharge and reliability thanks to pneumatic control
• External panel with sound and visual alarm included
• Perfect for residential and commercial environments with loaded water

Compatible Optional Components

• DIN 40 shut-off valve: Ref. VANNEDN50
• DIN 110 shut-off valve: Ref. VANNEDN100
• Active carbon filter Ø75: Ref. FILTRECUBICXLSFA

The SFA Sanicubic 2 GR SE71.1 T station is a powerful, safe, and efficient solution for demanding wastewater evacuations, offering maximum service continuity thanks to its alternating dual motorization and ready-to-install design.
