SFA Sanifloor+ 3 Suction Water Pump with Drain for Shower

The SFA Sanifloor+ 3 pump is an innovative solution for draining water from showers with ultra-flat trays of Ø90 mm, even when the main drain is at a higher elevation or a long distance away. This assisted drainage system allows for the installation of floor-level showers without the need for natural slope, facilitating modern, accessible renovations with functional design.

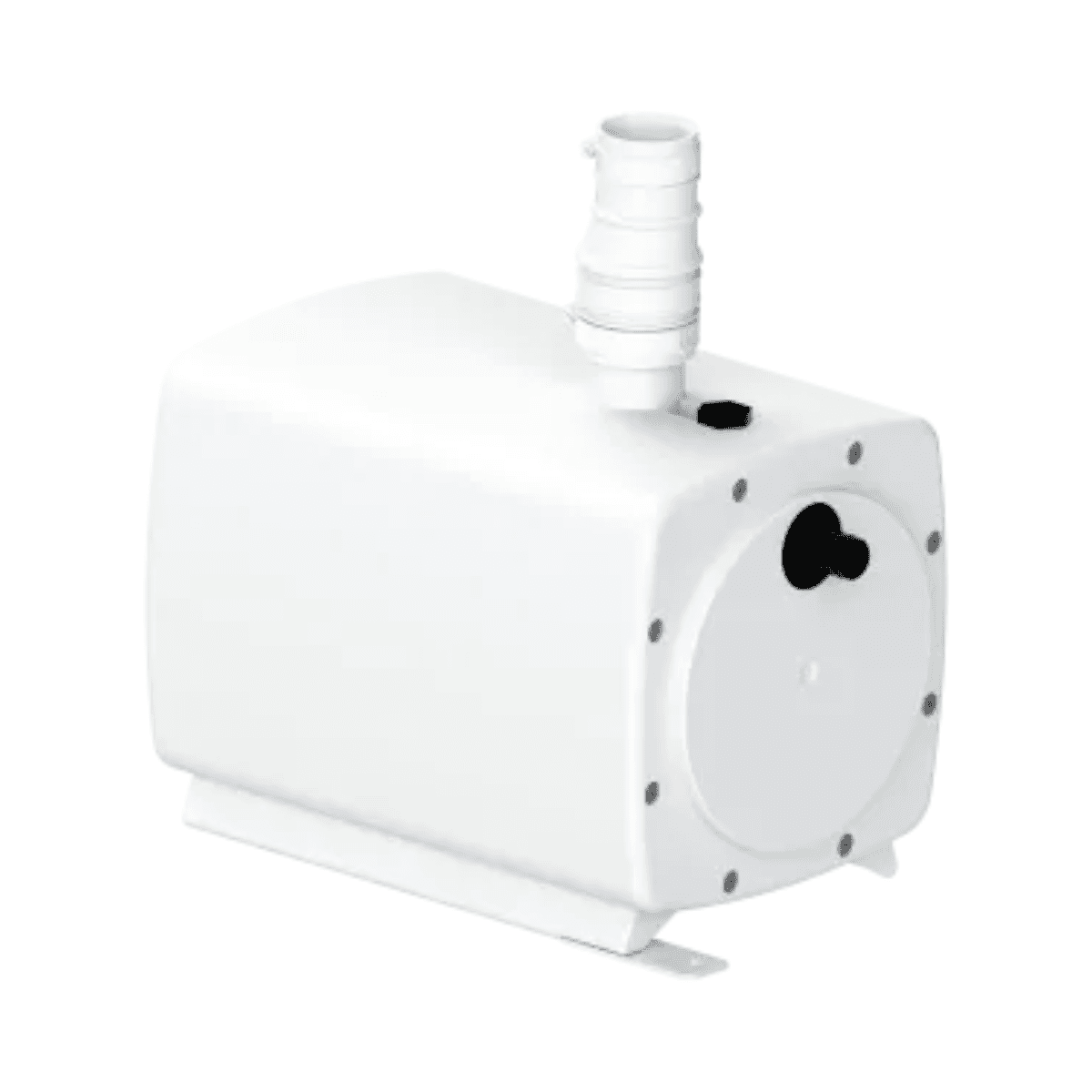

Sanifloor+ 3 consists of a 400 W suction pump, a drain with an integrated level sensor compatible with Ø90 mm shower trays, a remote wireless control box, 3 meters of Ø16 mm steel spiral hose, a sleeve with a non-return valve, and a removable hair filter. The entire set is designed to offer maximum efficiency and minimal maintenance.

The system operates completely automatically: water entering the drain siphon activates the level sensor, which wirelessly transmits the signal to the pump's remote box. The pump then starts, suctioning the water and sending it to the main drain through the hose, even if it is up to 3 meters higher or 30 meters away horizontally. The sensor and transmitter are factory-paired, simplifying installation.

With a flow rate of up to 30 liters per minute at 1 meter height, Sanifloor+ 3 is suitable for high-flow showers. Maintenance is very simple, thanks to the removable filter and easily replaceable detection module. Its compact design (only 57 mm total height) facilitates integration under ultra-flat shower trays without the need for deep construction work.

Included Components

• 400 W suction pump with wireless remote box
• Drain for Ø90 mm shower tray with level sensor
• 3 m of reinforced steel spiral hose (Ø16 mm)
• Straight sleeve with included non-return valve
• Removable and washable hair filter

Technical Specifications

• Application: Ultra-flat shower trays of Ø90 mm
• Shower tray height: 0 cm (floor-level installation)

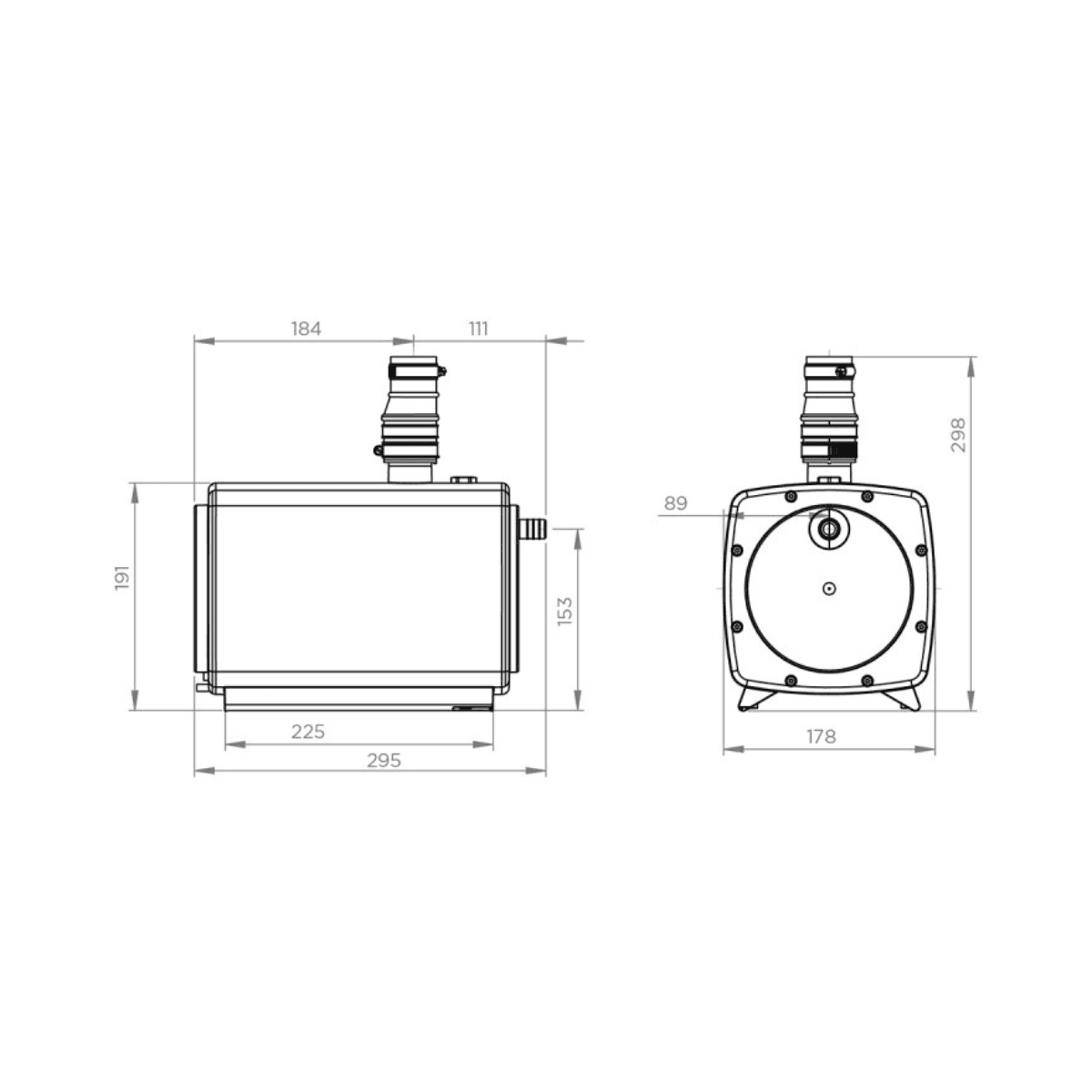

• Total system height: 57 mm
• Maximum flow rate: 30 L/min at 1 m height
• Maximum vertical lift: 3 m
• Maximum horizontal lift: 30 m
• Drain outlet diameter: 16 mm
• Recommended evacuation diameter: 32 mm
• Number of inlets: 1
• Drain material: ABS / stainless steel

Electrical Features

• Power supply voltage: 220-240 V / 50 Hz
• Motor consumption: 400 W
• Maximum absorbed current: 1.7 A
• Electrical class: I
• Protection index: IP44
• Maximum water temperature: 35 °C

Main Advantages

• Installation of floor-level shower trays without gravity drainage
• Wireless system with factory-paired sensor
• Drain compatible with standard Ø90 mm trays
• Powerful and silent drainage even with high-flow showers
• Accessible maintenance without special tools

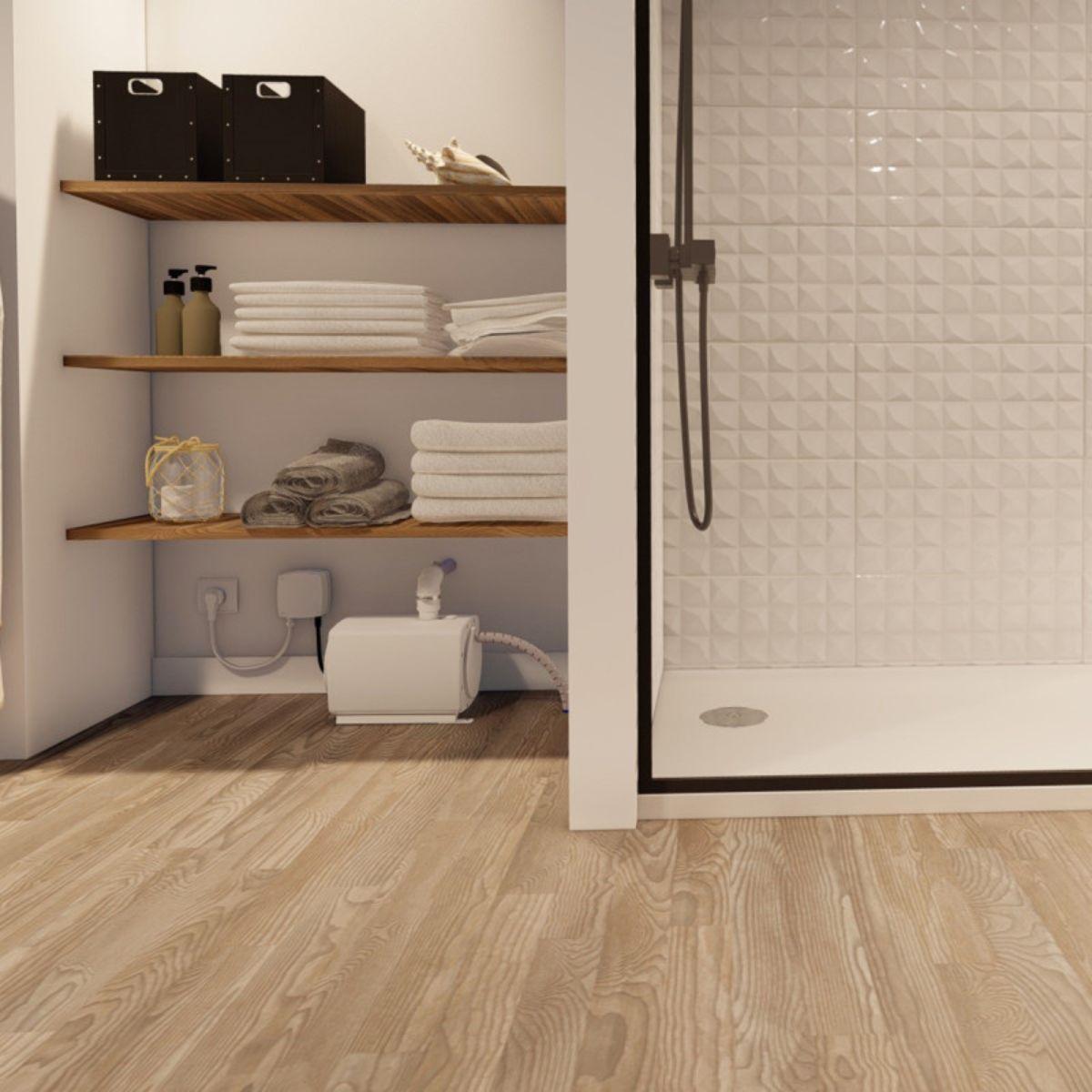

The SFA Sanifloor+ 3 pump allows for the installation of modern and accessible showers without compromising optimal performance. A technical and aesthetic solution for renovation projects where design, functionality, and ease of installation are priorities.
