SFA Sanifloor+ 1 Shower Drain Suction Water Pump

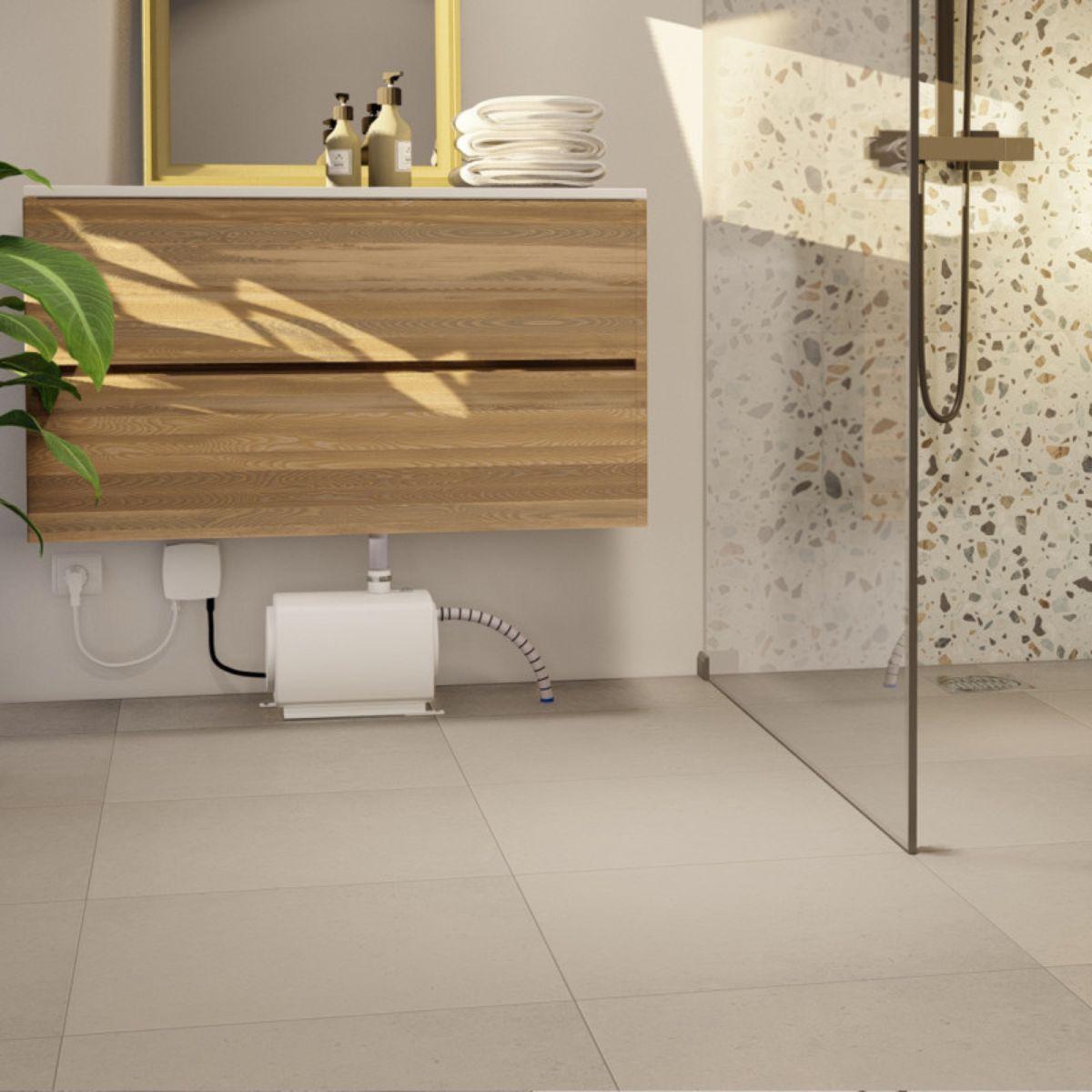

The SFA Sanifloor+ 1 suction water pump is the ideal solution for installing a floor-level shower in places where the main drain is far or higher than the shower outlet. This system is specially designed for built-in showers or Italian-style showers, where a modern, functional, and step-free finish is desired.

The Sanifloor+ 1 set includes a 400 W suction pump, a drain with an integrated level sensor, a wireless control box, a 3-meter reinforced spiral hose, a non-return valve, and a removable filter. The entire system has been designed to operate automatically, quietly, and with very simple maintenance.

The operating principle is simple and effective: when water enters the drain, the level sensor detects its presence and sends a wireless signal to the pump's control box. It activates automatically and suctions the water to evacuate it to the main drain, even when it is up to 3 meters higher or 30 meters away horizontally. The sensor and pump are factory-paired, so no additional configuration is required.

Sanifloor+ 1 allows evacuation of up to 30 liters per minute at 1 meter height, making it suitable even for high-flow showers. The integrated hair filter in the siphon is removable and washable, facilitating regular maintenance. Additionally, the detection module can also be replaced quickly and easily if necessary.

Thanks to its compact design and wireless technology, the system is discreet, easy to install, and compatible with renovation or new construction projects. Manufactured in France by SFA, this set guarantees quality, reliability, and a design intended to facilitate the work for installers and renovation professionals.

Included Components

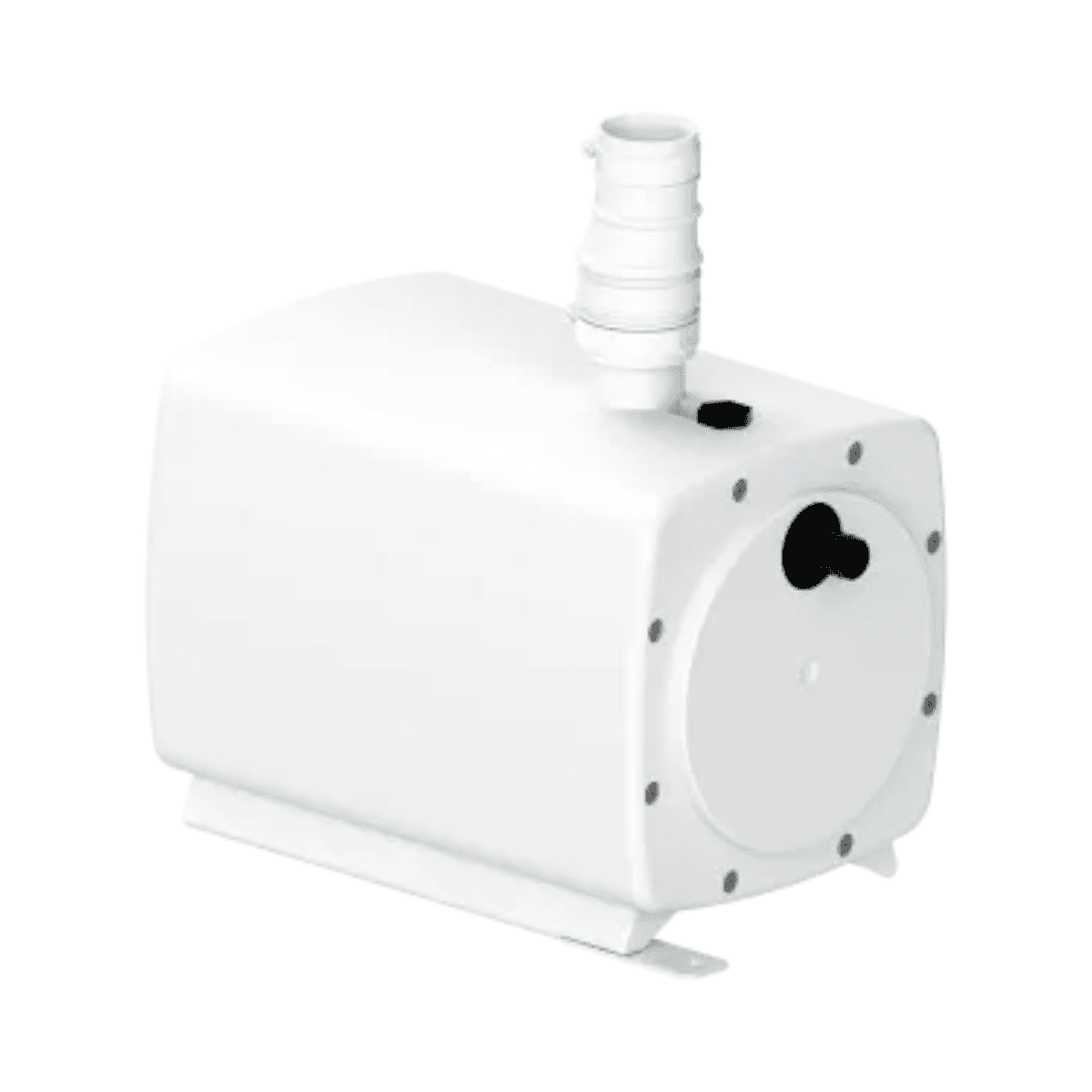

• 400 W suction pump with remote control box
• Shower drain with detection module and removable filter
• 3 m of steel spiral hose (Ø16 mm) cuttable
• Straight sleeve with non-return valve

Technical Specifications

• Application: Italian shower / built-in shower
• Shower tray height: 0 cm (floor level)

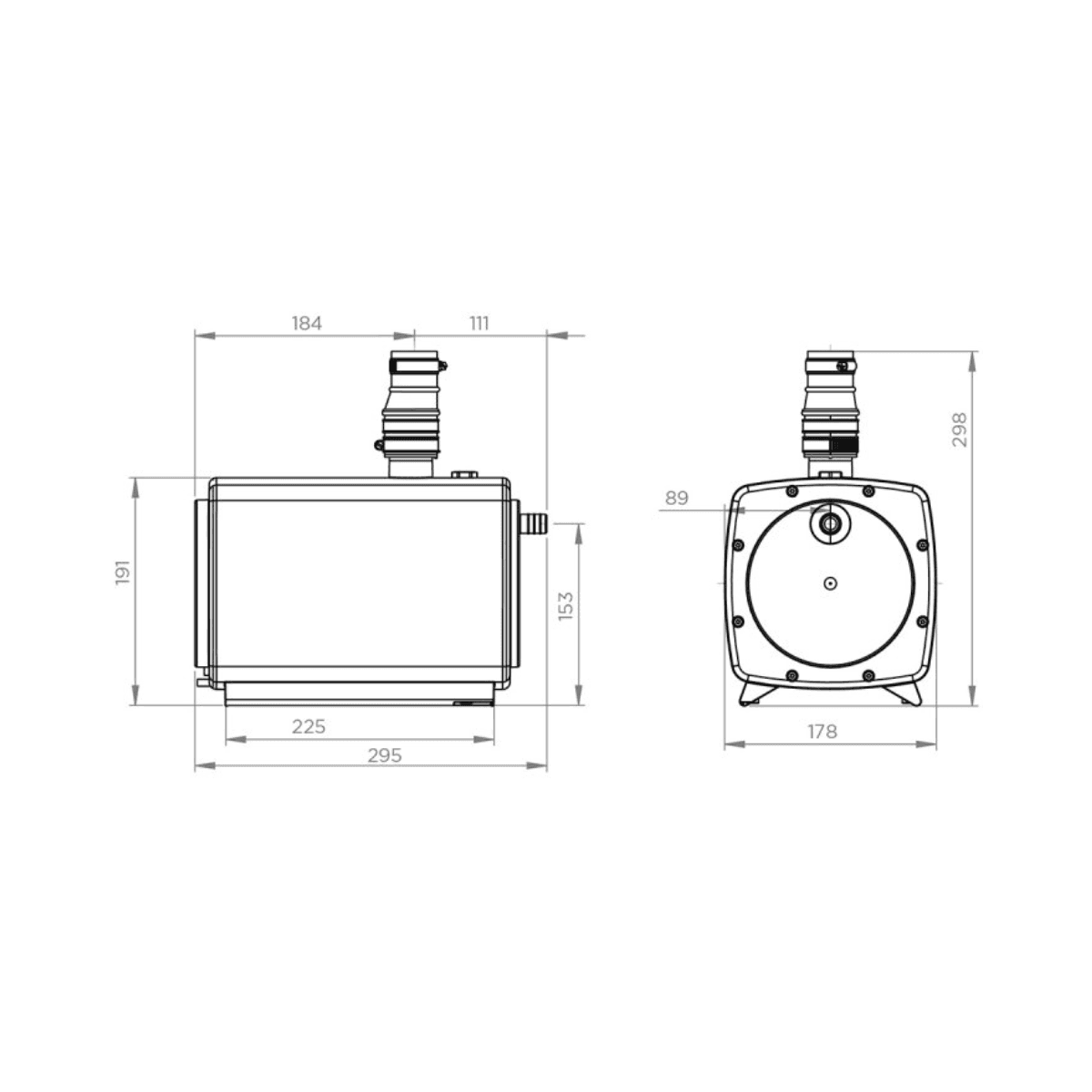

• Total system height: 68 mm
• Maximum flow rate: 30 L/min at 1 m height
• Maximum vertical return: 3 m
• Maximum horizontal return: 30 m
• Drain outlet diameter: 16 mm
• Recommended return diameter: 32 mm
• Number of inlets: 1
• Drain material: ABS / stainless steel

Electrical Features

• Power supply voltage: 220-240 V / 50 Hz
• Motor consumption: 400 W
• Maximum absorbed current: 1.7 A
• Electrical class: I
• Protection index: IP44
• Maximum water temperature: 35 °C

Main Advantages

• Allows installation of floor-level showers where there is no sloped drainage
• Wireless automatic activation system by level sensor
• Easy maintenance: removable hair filter and replaceable detection module
• Powerful and quiet evacuation of up to 30 L/min at 1 m
• Installation without complicated works or structural renovations

The SFA Sanifloor+ 1 pump is the ideal choice for modern renovation projects where design, functionality, and accessibility are a priority. A reliable technical solution to create accessible showers without compromising evacuation performance.
