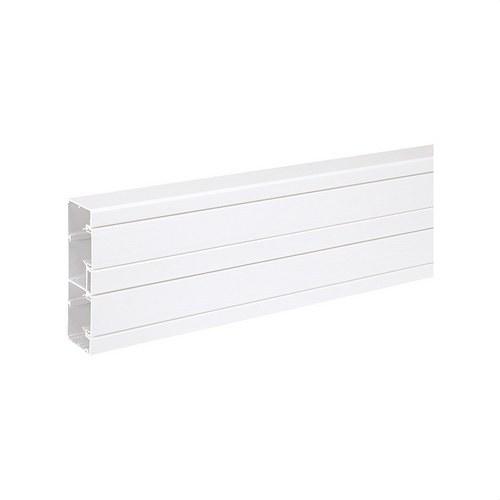

PVC Trunking 160x55mm K45 with 2 Compartments

The Simon K45 160x55 mm PVC Trunking is a professional solution designed for electrical, voice, data, and multimedia installations that require organization, safety, and quick assembly. With a length of 2 meters and two independent front compartments, it allows you to directly mount all K45 range functions without the need for additional accessories, optimizing time and reducing installation costs.

Its design ensures at all times the isolation of electrical wiring from communication circuits, while also maintaining the proper cable bending radius throughout the distribution. This makes it an ideal option for offices, educational centers, commercial spaces, and professional environments where installation quality is key.

Manufactured from high-quality PVC in white RAL 9003, this trunking offers excellent fire resistance, being flame-retardant, self-extinguishing, and non-flame propagating. It features an IP4X protection rating and high mechanical resistance, ensuring durability even in demanding conditions.

Thanks to its accessory system and pre-punched line, it easily adapts to different architectures, allowing quick and precise branching to mini-trunking or cable ducts. In addition, it features slots every 25 cm for secure fixing to both walls and ceilings.

• 2-meter long PVC trunking.
• 160 x 55 mm section
• Version with 2 front compartments
• Compatible with all K45 functions
• Electrical and data cable isolation.
• White color RAL 9003
• Flame-retardant and self-extinguishing material
• IP4X protection rating
• IK07 classification
• Heat resistance up to +125 ºC (IEC 60695-10-2)

• Dimensions: 160 x 55 x 2000 mm
• Depth: 55 mm
• Maximum working temperature: 120 ºC
• Installation temperature range: -25 ºC to +120 ºC
• Wall and ceiling installation
• Component and cover removal only with tools.

Maintenance is simple and safe, recommended only with a soft, dry cloth, without using abrasive products or chlorine-based cleaners.

The indicated price is per linear meter. The product is supplied in packs of 6 units, equivalent to a total of 12 meters of trunking.

A trunking system designed for professionals seeking a clean, robust, and well-organized installation, with the quality guarantee of Simon and the flexibility needed to adapt to any project.
