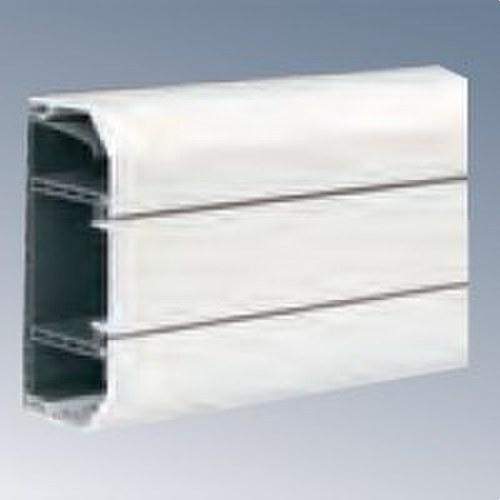

CABLOMAX PVC Trunking 130x55mm K45

The CABLOMAX PVC Trunking 130x55mm K45 (ref. TK02103/9) is a professional solution designed for the safe and organized distribution of electrical wiring, voice, data, and multimedia cables. With a length of 2 meters and a section of 130 x 55 mm, this trunking ensures versatility, durability, and optimized installation in technical and commercial environments.

It features 1 front compartment with the capacity to mount all K45 range functions without the need for additional accessories, significantly saving assembly time. Additionally, it includes 2 extra internal compartments that allow for efficient and organized cable management.

Its design ensures insulation between electrical wiring and voice, data, or multimedia cables, always maintaining the proper bending radius during installation and guaranteeing optimal system performance.

Key technical features:

• Dimensions: 130 x 55 x 2000 mm
• Length per unit: 2 meters
• 3 compartments (1 front + 2 internal)
• Compatible with K45 functions
• Material: High-quality PVC
• Finish: White
• Protection rating: IP4X
• Mechanical resistance classification: IK07
• Flame-retardant, self-extinguishing, and non-flame propagating material
• Heat resistance: +125ºC (according to IEC 60695-10-2)
• Maximum working temperature: 120ºC
• Installation temperature range: -25ºC to +120ºC

Designed to adapt to different architectures, it can be installed on walls and ceilings and complemented with specific accessories for perfect integration into any project. Component, cover, and frame removal is only possible with tools, ensuring safety and stability.

The indicated price is per meter and it is supplied in lots of 4 units (8 meters in total), making it easier to plan larger installations.

Maintenance:

• Clean with a soft, dry cloth.
• Do not use abrasive products or cleaners containing chlorine.

A robust, safe, and efficient trunking, designed for professional installations where organization, protection, and quick assembly are essential.

Ideal for demanding projects where every detail matters and installation quality makes a difference from day one.
