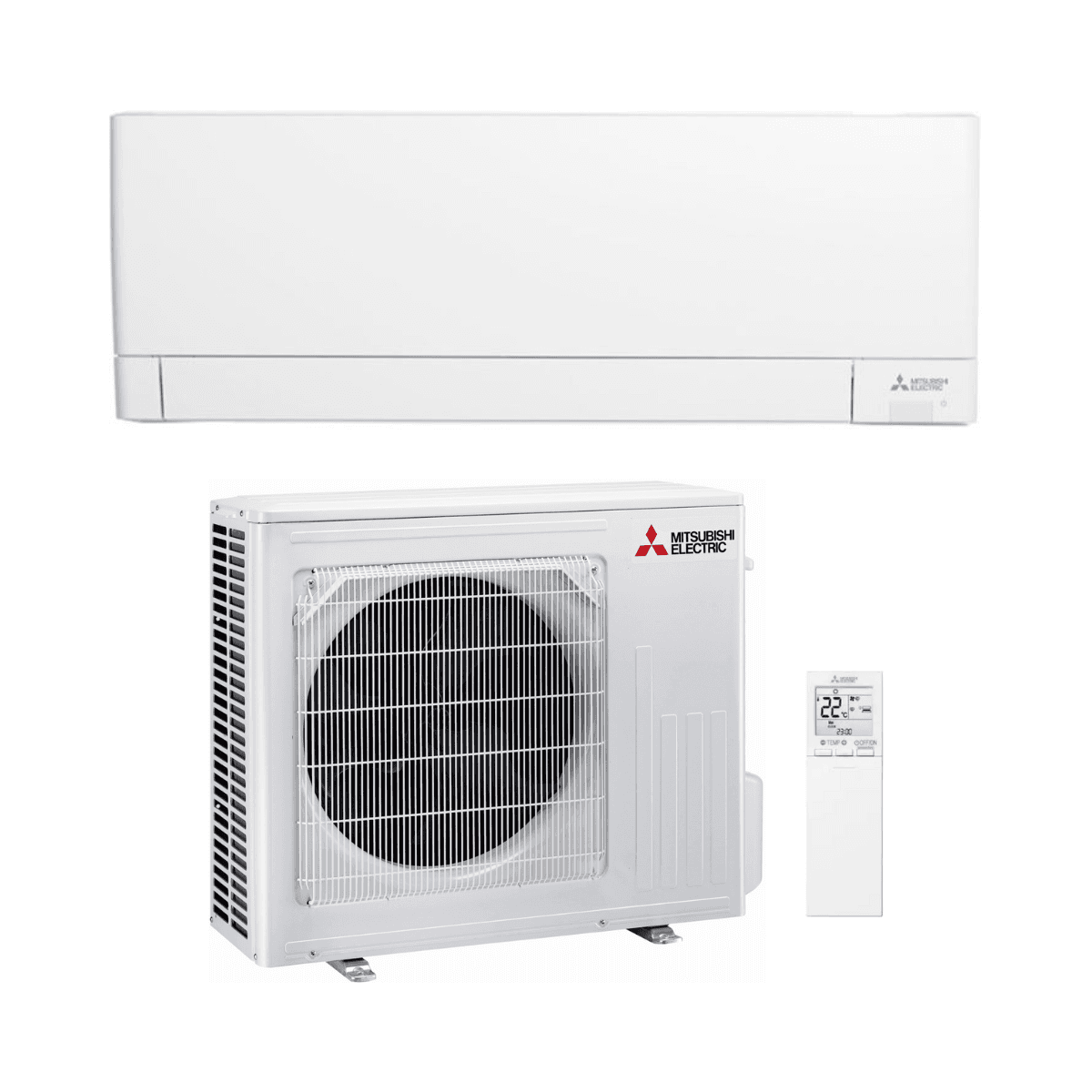

Mitsubishi MSZ-AY35VGK Air Conditioner with WiFi 3.5 kW 12000 BTU

The Mitsubishi Electric MSZ-AY35VGK set, consisting of the indoor unit MSZ-AY35VGK/U and the outdoor unit MUZ-AY35VG, is designed to deliver maximum comfort, low energy consumption, and integrated connectivity. With a nominal cooling capacity of 3.5 kW, it is ideal for air conditioning spaces of approximately 20 to 35 m², both in residential homes and in projects replacing traditional heating systems.

Performance and Energy Efficiency

• Nominal cooling capacity: 3.5 kW (1.1 – 3.8 kW)
• Nominal heating capacity: 4.0 kW (1.3 – 4.6 kW)
• Power consumption in cooling: 0.99 kW
• Power consumption in heating: 1.03 kW
• SEER: 8.7
• SCOP (average climate): 4.7
• SCOP (warm climate): 5.9
• EER / COP: 3.54 / 3.88
• Annual electricity consumption (cooling): 141 kWh/year
• Annual electricity consumption (heating, average climate): 863 kWh/year
• Design load in cooling (Pdesign): 3.5 kW
• Design load in heating (-10 °C): 2.9 kW

Mitsubishi Electric's Inverter technology optimizes compressor operation to maintain a stable temperature with minimal electricity consumption, improving seasonal efficiency and reducing energy costs.

Guaranteed Operation in Demanding Conditions

• Cooling operating range: -10 °C to +46 °C
• Heating operating range: -20 °C to +24 °C

The heat pump maintains its heating operation down to -20 °C outdoors, ensuring reliability even in cold climates.

Acoustic Comfort and Indoor Air Quality

• Indoor unit sound level: 18 / 24 / 30 / 36 / 42 dB(A)
• Indoor sound power: 57 dB(A)
• Ultra-silent mode: from 18 dB(A)
• Integrated air purifying filter included
• Compatible with Plasma Quad Plus filter (optional)
• Dual Barrier coating on coil
• Interior self-cleaning mode

The integrated air purifying filter captures particles, bacteria, and allergens, improving indoor air quality. The Dual Barrier coating helps keep the coil clean, while the self-cleaning mode dries the interior of the unit to prevent mold and unpleasant odors.

Integrated WiFi and Smart Control

The unit features built-in WiFi compatible with the MELCloud platform, allowing remote control from a smartphone, tablet, or PC. In addition to managing temperature and scheduling, the app enables monitoring of electricity consumption for more efficient energy management.

Technical Specifications Indoor Unit MSZ-AY35VGK/U

• Dimensions (H x W x D): 299 x 798 x 245 mm
• Weight: 10.5 kg
• Airflow: 3.6 / 5.0 / 6.3 / 7.8 / 11.1 m³/min

Technical Specifications Outdoor Unit MUZ-AY35VG

• Dimensions (H x W x D): 550 x 800 x 285 mm
• Weight: 31 kg
• Airflow: 36.3 m³/min
• Sound level: 49 dB(A)
• Sound power: 61 dB(A)
• Refrigerant: R32
• Refrigerant charge: 0.55 kg
• GWP: 675
• TCO₂ eq: 0.37
• Power supply: 230 V / 1 Phase
• Maximum current: 8.46 A
• Piping diameter (liquid / gas): 6.35 / 9.52 mm
• Maximum pipe length (vertical / total): 12 / 20 m

The Mitsubishi MSZ-AY35VGK is an efficient, quiet, and connected climate control solution, especially recommended for installers seeking high seasonal performance, low consumption, and reliability in residential projects.
