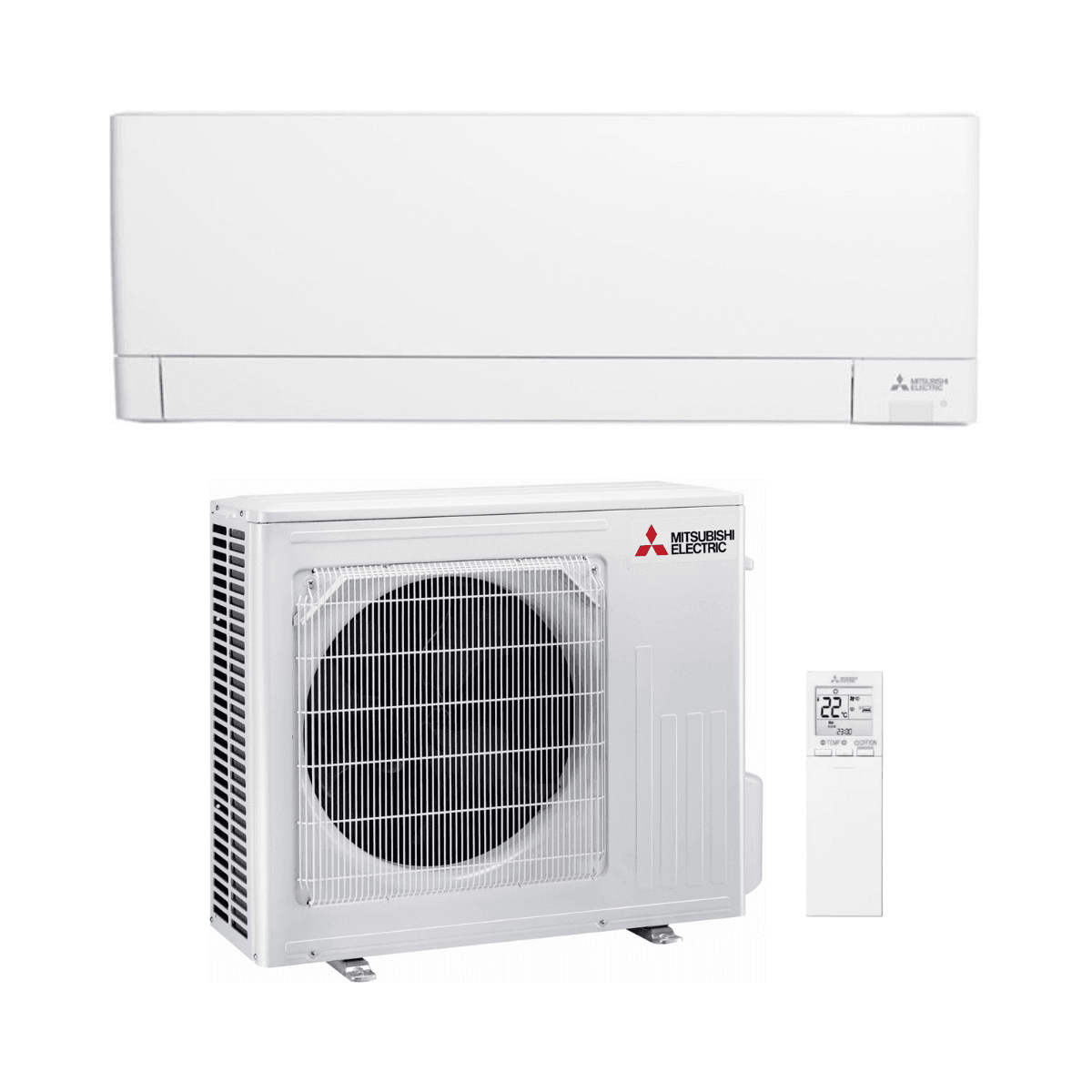

Mitsubishi MSZ-AY50VGK 5.0 kW 18000 BTU Air Conditioner with WiFi

The Mitsubishi Electric MSZ-AY50VGK set, consisting of the indoor unit MSZ-AY50VGK/U and the outdoor unit MUZ-AY50VG, offers a nominal cooling capacity of 5.0 kW, making it ideal for air conditioning spaces of approximately 40 to 55 m². It is designed for residential applications that require higher power without sacrificing energy efficiency and low noise levels.

Performance and Energy Efficiency

• Nominal cooling capacity: 5.0 kW (1.4 – 5.4 kW)
• Nominal heating capacity: 5.8 kW (1.4 – 7.3 kW)
• Power consumption in cooling: 1.55 kW
• Power consumption in heating: 1.60 kW
• SEER: 7.5
• SCOP (average climate): 4.7
• SCOP (warm climate): 5.9
• EER / COP: 3.23 / 3.63
• Annual electricity consumption (cooling): 232 kWh/year
• Annual electricity consumption (heating, average climate): 1,248 kWh/year
• Cooling design load (Pdesign): 5.0 kW
• Heating design load (-10 °C): 4.2 kW

Thanks to Inverter technology and R32 refrigerant, the unit modulates compressor power to maintain a stable temperature with lower electricity consumption, optimizing seasonal performance and reducing energy costs.

Operation in Demanding Climate Conditions

• Cooling operating range: -10 °C to +46 °C
• Heating operating range: -20 °C to +24 °C

The heat pump maintains its heating capacity down to -20 °C outdoors, offering reliability in cold climates and ensuring continuous comfort during winter.

Acoustic Comfort and Air Quality

• Indoor unit sound level: 28 / 33 / 36 / 40 / 44 dB(A)
• Indoor sound power: 58 dB(A)
• Integrated air purifying filter
• Compatible with Plasma Quad Plus filter (optional)
• Dual Barrier coating on coil
• Interior self-cleaning mode

The integrated air purifying filter captures suspended particles, bacteria, and allergens, improving indoor air quality. The Dual Barrier coating helps keep the coil clean, while the self-cleaning mode dries the interior to prevent moisture buildup, mold, and unpleasant odors.

Built-in WiFi Control

The system includes built-in WiFi compatible with the MELCloud platform, allowing remote control from a smartphone, tablet, or PC. In addition to managing temperature and scheduling, the app enables you to view electricity consumption for greater energy control.

Technical Specifications Indoor Unit MSZ-AY50VGK/U

• Dimensions (H x W x D): 299 x 798 x 245 mm
• Weight: 10.5 kg
• Airflow: 5.2 / 6.4 / 7.5 / 9.1 / 11.7 m³/min

Technical Specifications Outdoor Unit MUZ-AY50VG

• Dimensions (H x W x D): 714 x 800 x 285 mm
• Weight: 40 kg
• Airflow: 40.5 m³/min
• Sound level: 52 dB(A)
• Sound power: 64 dB(A)
• Refrigerant: R32
• Refrigerant charge: 1.00 kg
• GWP: 675
• TCO₂ eq: 0.68
• Power supply: 230 V / 1 Phase
• Maximum current: 13.6 A
• Piping diameter (liquid / gas): 6.35 / 9.52 mm
• Maximum pipe length (vertical / total): 12 / 20 m

The Mitsubishi MSZ-AY50VGK is a robust and efficient solution for high thermal demand air conditioning, offering high seasonal performance, integrated connectivity, and reliability in residential projects that require greater power without compromising efficiency or acoustic comfort.
