Mitsubishi 3-in-1 Air Conditioner with WiFi MXZ HR 2.5 kW 9000 BTU

The Mitsubishi Electric MXZ HR 3x1 multisplit air conditioner allows you to cool or heat up to three rooms independently using a single outdoor unit. Each MSZ-HR25VFK indoor unit provides 2.5 kW of cooling power, offering individual comfort control in each area. Inverter technology and the use of R32 refrigerant ensure efficient and quiet operation all year round.

Technical Specifications

• Combination: 3 × MSZ-HR25VFK/U + 1 × MXZ-3HA50VF
• Total cooling capacity: 5.0 kW (18000 BTU)
• Total heating capacity: 6.0 kW
• SEER: 6.6
• SCOP: 4.3
• EER: 3.25
• COP: 3.82
• Refrigerant: R32
• Indoor unit noise level: 21 dB(A) in silent mode
• Outdoor unit noise level: 48 dB(A)
• Connectivity: Integrated WiFi (MELCloud)
• Refrigerant connections: 3 × 1/4” (Ø6.35 mm) – 3 × 3/8” (Ø9.52 mm)

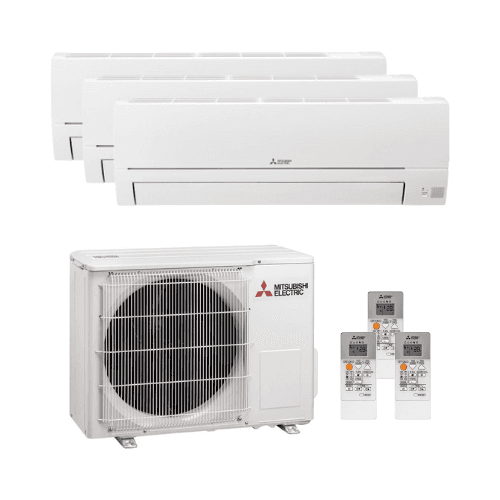

Set Composition

• 3 × MSZ-HR25VFK/U indoor units
• 1 × MXZ-3HA50VF outdoor unit
• 3 × Infrared remote controls

Installation and Maintenance

The system is supplied without additional installation materials. Each indoor unit has an independent 1/4” and 3/8” refrigerant connection. Front access to filters and components simplifies maintenance and cleaning. Ideal for residential installations with multiple rooms or small businesses.

Dimensions and Weight

• Indoor unit (MSZ-HR25VFK/U): 280 × 838 × 228 mm – 8.5 kg
• Outdoor unit (MXZ-3HA50VF): 710 × 840 × 330 mm – 55 kg

Recommended Applications

Recommended for homes, apartments, or small offices where independent climate control is needed for three rooms with a single, efficient, and quiet outdoor system.
