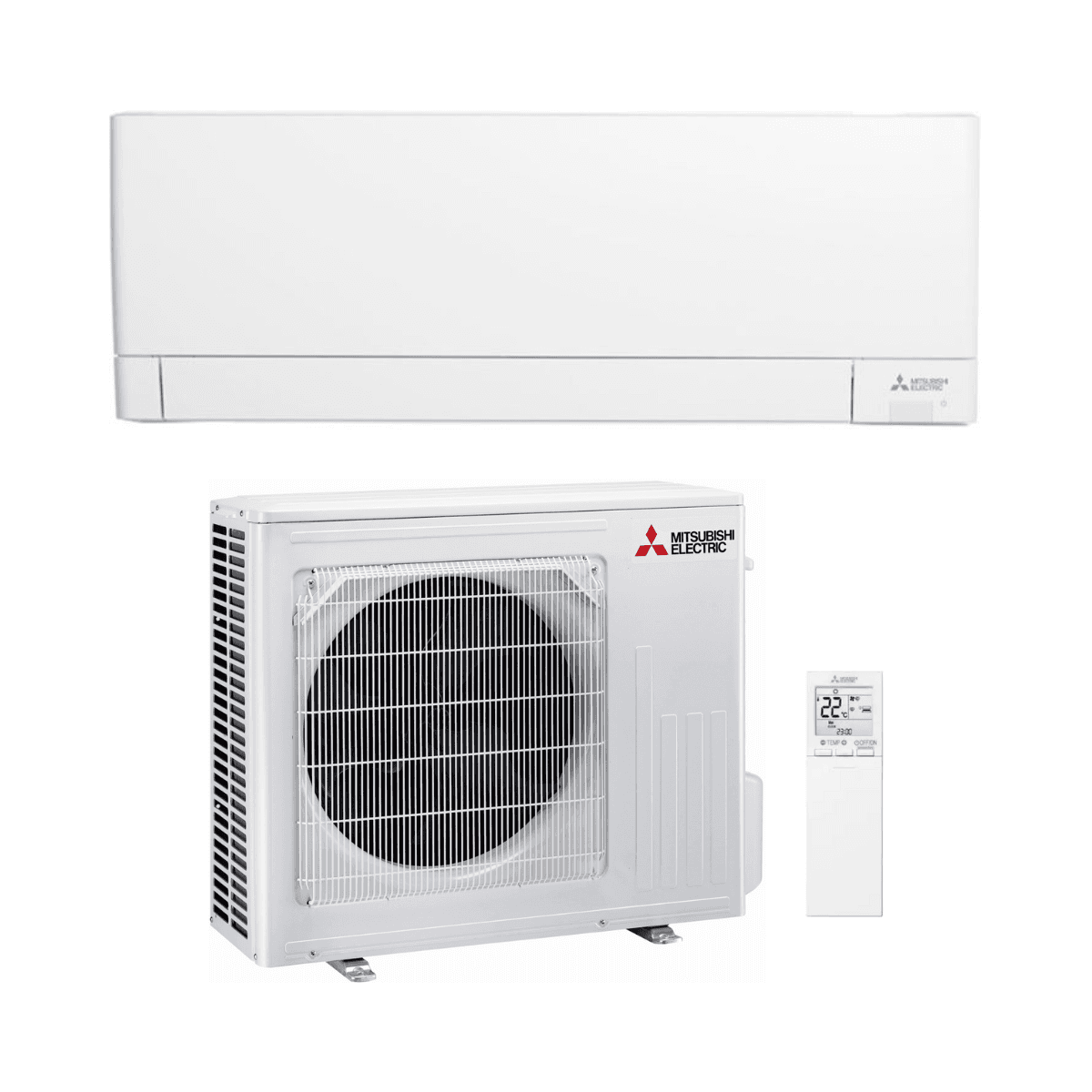

Mitsubishi MSZ-AY25VGK 2.5 kW 9000 BTU Air Conditioner with WiFi

The Mitsubishi Electric MSZ-AY25VGK set, consisting of the indoor unit MSZ-AY25VGK/U and the outdoor unit MUZ-AY25VG, offers an optimal balance between energy savings, advanced features, and acoustic comfort. Designed to climate-control rooms of approximately 15 to 25 m², it is an ideal solution for both new construction and replacement of traditional heating systems.

Performance and Energy Efficiency

• Nominal cooling capacity: 2.5 kW (0.9 – 3.4 kW)
• Nominal heating capacity: 3.2 kW (1.0 – 4.1 kW)
• Power consumption in cooling: 0.60 kW
• Power consumption in heating: 0.78 kW
• SEER: 8.7
• SCOP (average climate): 4.8
• SCOP (warm climate): 5.8
• EER / COP: 4.17 / 4.10
• Annual electricity consumption (cooling): 100 kWh/year
• Annual electricity consumption (heating, average climate): 697 kWh/year
• Cooling design load (Pdesign): 2.5 kW
• Heating design load (-10 °C): 2.4 kW

Thanks to its heat pump technology with R32 refrigerant and Inverter compressor, it delivers high performance with low power consumption, helping to reduce energy costs throughout the year.

Operation in Extreme Conditions

• Cooling operating range: -10 °C to +46 °C
• Heating operating range: -20 °C to +24 °C

Its technology allows heating to remain operational even with outdoor temperatures as low as -20 °C, ensuring comfort in cold climates.

Acoustic Comfort and Air Quality

• Indoor unit sound level: 18 / 24 / 30 / 36 / 42 dB(A)
• Indoor sound power: 57 dB(A)
• Ultra-silent mode: from 18 dB(A)
• Integrated air purifying filter
• Compatible with Plasma Quad Plus filter (optional)
• Dual Barrier coating on coil
• Interior self-cleaning mode

The system includes a standard air purifying filter capable of capturing particles, bacteria, and allergens. Additionally, it is compatible with the optional Plasma Quad Plus filter for advanced indoor air quality improvement. The Dual Barrier coating and self-cleaning mode help keep the unit clean, preventing mold and unpleasant odors.

Integrated WiFi Control with MELCloud

Includes built-in WiFi compatible with the MELCloud platform, allowing remote control from a smartphone, tablet, or PC. In addition to managing temperature and scheduling, the app enables you to monitor electricity consumption for greater energy control.

Technical Specifications Indoor Unit MSZ-AY25VGK/U

• Dimensions (H x W x D): 299 x 798 x 245 mm
• Weight: 10.5 kg
• Airflow: 3.6 / 5.0 / 6.3 / 7.8 / 10.5 m³/min

Technical Specifications Outdoor Unit MUZ-AY25VG

• Dimensions (H x W x D): 550 x 800 x 285 mm
• Weight: 31 kg
• Airflow: 36.3 m³/min
• Sound level: 47 dB(A)
• Sound power: 59 dB(A)
• Refrigerant: R32
• Refrigerant charge: 0.55 kg
• GWP: 675
• CO₂ equivalent: 0.37
• Power supply: 230 V / 1 Phase
• Maximum current: 7.06 A
• Piping diameter (liquid / gas): 6.35 / 9.52 mm
• Maximum piping length (vertical / total): 12 / 20 m

The Mitsubishi MSZ-AY25VGK is a complete solution for efficient, quiet, and connected home climate control, especially recommended for installers seeking reliability, low consumption, and high comfort in residential projects.
