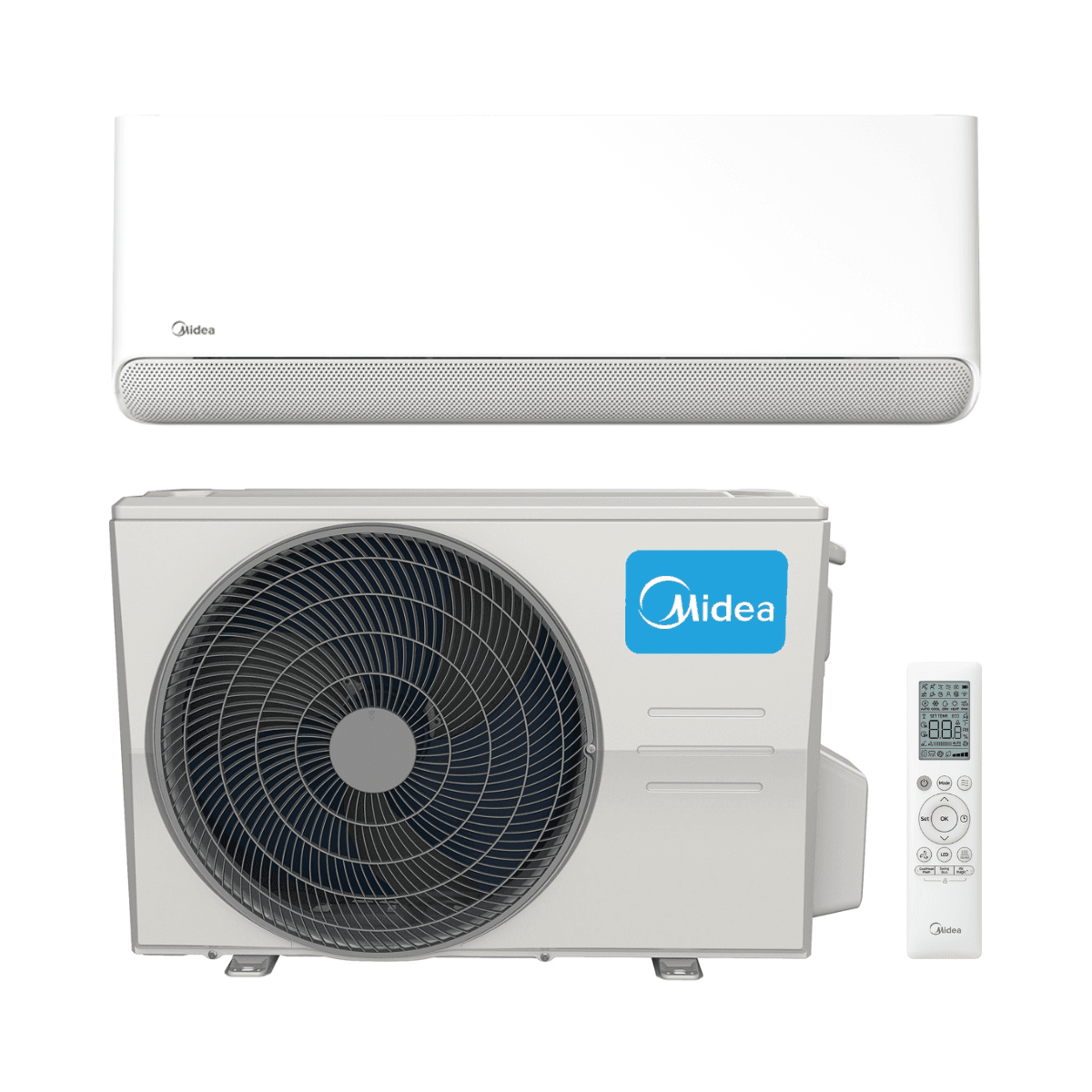

Midea i-Cube Breezeless E 5.2 kW 18000 BTU Air Conditioner with WiFi

The Midea i-Cube Breezeless E 5.2 kW is a high-capacity wall-mounted split air conditioner designed to cool large rooms with a softer, more comfortable airflow. Its Breezeless technology helps avoid direct drafts, dispersing the air more evenly to improve thermal comfort in large living rooms, dining rooms, offices, or open-plan areas.

The set consists of the outdoor unit MOM-18NXD0 and the indoor unit CB1-18 HRFN8-I. It includes built-in WiFi, R-32 refrigerant, DC Inverter compressor, DC Inverter outdoor fan, active carbon filter, self-cleaning, Economic mode, Silence mode, leak detection, and Golden Fin protection.

Recommended application

With a nominal cooling capacity of 5.27 kW, this unit is suitable for rooms of approximately 40 to 55 m², as a general reference only. In spaces with high ceilings, large windows, very sunny orientations, or limited insulation, it is advisable to confirm the power requirement through a thermal load calculation.

Breezeless comfort for large spaces

Breezeless technology lets you enjoy a more pleasant air conditioning experience by softening the air outlet and distributing it more evenly. In a 5.2 kW unit, this feature is especially interesting because it allows you to take advantage of greater cooling capacity without creating an uncomfortable direct draft sensation.

• Softer, more comfortable airflow.
• Even distribution in large rooms.
• Reduced sensation of direct blasts.
• Silence mode to reduce noise levels.
• Minimum sound pressure of 20.5 dB(A) on the indoor unit.

Built-in WiFi and smart control

The unit features built-in WiFi and can be managed from the compatible Midea Smart Home app. This connectivity allows you to control the temperature, change operating modes, schedule the unit, and adapt usage to the real needs of each moment.

• Built-in WiFi.
• Remote control from smartphone.
• Smart Home compatibility.
• Economic mode to optimize energy consumption.
• Air vane memory.
• LED display.
• Emergency operation.
• Standby consumption of 1 W.

Air quality and durability

The Midea Breezeless E integrates an active carbon filter and self-cleaning function, two features designed to improve everyday use and maintenance of the unit. In addition, the Golden Fin treatment provides greater protection for the heat exchanger, helping preserve system performance and reliability.

• Active carbon filter.
• Self-cleaning.
• Refrigerant leak detection.
• Golden Fin.
• Prime Guard.
• DC Inverter compressor.
• DC Inverter outdoor fan.
• Replace technology.

Technical data of the set

• Commercial model: Breezeless E 52(18)N8.
• Official set code: 13950409.
• Nominal cooling capacity: 5.27 kW.
• Cooling capacity range: 1.94 - 6.28 kW.
• Nominal heating capacity: 5.57 kW.
• Heating capacity range: 1.29 - 7.01 kW.
• Nominal heating capacity at -7 ºC: 4.56 kW.
• Nominal cooling input power: 1600 W.
• Cooling input power range: 150 - 2250 W.
• Nominal heating input power: 1500 W.
• Heating input power range: 220 - 2350 W.
• Nominal heating input power at -7 ºC: 2000 W.
• EER: 3.29.
• COP: 3.51.
• COP at -7 ºC: 2.28.
• SEER: 7.10.
• SCOP: 4.10.
• Refrigerant: R-32.
• GWP: 675.

Indoor unit CB1-18 HRFN8-I

• Equivalent official indoor unit in datasheet: MCB1-18N8.
• Indoor unit code: 13900087.
• Power supply: with communication.
• Communication wiring: (4+T) x 1.5 mm².
• Net dimensions: 968 x 320 x 225 mm.
• Net weight: 12.3 kg.
• Airflow low/medium/high: 510 / 620 / 835 m³/h.
• Sound pressure silent/low/medium/high: 20.5 / 32.5 / 36.5 / 41 dB(A).
• Sound power level: 56 dB(A).
• Standard included remote control: RG10N8(2Hs)/BGEF.

Outdoor unit MOM-18NXD0

• Outdoor unit code: 13900088.
• Compressor type: rotary.
• Power supply: 220-240 V / 1 / 50 Hz.
• Power wiring: (2+T) x 2.5 mm².
• Maximum current: 10.37 A.
• Recommended circuit breaker: D16.
• Net dimensions: 805 x 554 x 330 mm.
• Net weight: 32.3 kg.
• Airflow: 2100 m³/h.
• Sound pressure: 57 dB(A).
• Sound power level: 65 dB(A).
• Factory refrigerant charge: 1.1 kg.
• CO₂ equivalent: 0.74 t.
• Included precharge: 5 m.
• Additional charge: 0.012 kg/m.
• Gas pipe diameter: 1/2".
• Liquid pipe diameter: 1/4".
• Maximum total/vertical piping length: 30 / 20 m.
• Outdoor temperature range in heating: -20 ºC to 24 ºC.
• Outdoor temperature range in cooling: -15 ºC to 50 ºC.

Main advantages

The Midea Breezeless E 5.2 kW is a powerful, complete solution for large rooms where fast, efficient, and pleasant air conditioning is required. Its combination of high capacity, Breezeless technology, built-in WiFi, low noise level, and maintenance functions makes it a very attractive option for users who prioritize comfort and control in larger spaces.
