Midea i-Cube Breezeless E 3.5 kW 12000 BTU Air Conditioner with WiFi

The Midea i-Cube Breezeless E 3.5 kW is a wall-mounted split air conditioner designed to provide cooling and heating with especially gentle comfort. Its Breezeless technology disperses air evenly, reducing direct drafts and creating a more pleasant indoor climate in living rooms, large bedrooms, offices, or regularly used spaces.

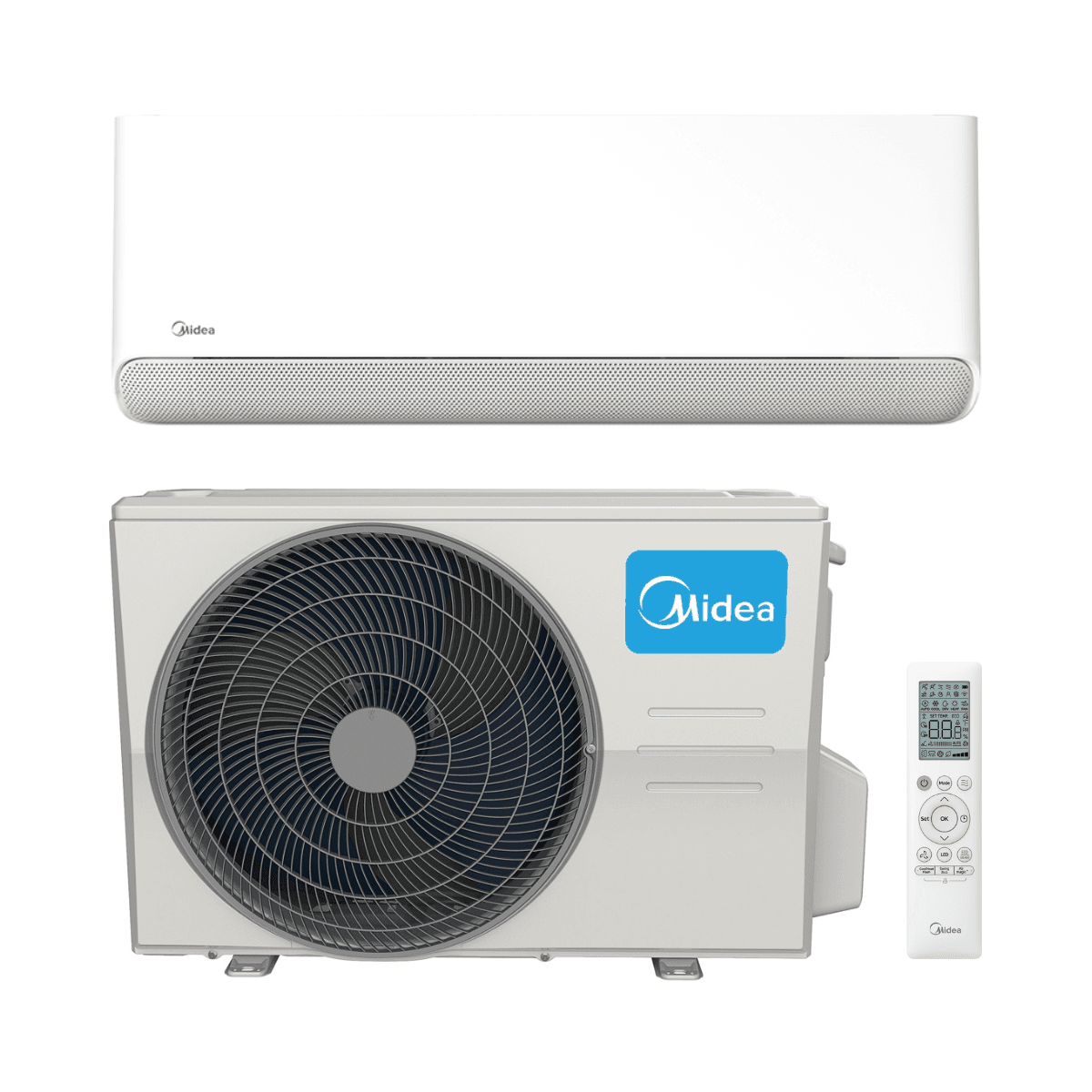

The set consists of the indoor unit CB1-12 HRFN8-I and the outdoor unit EZ-12RD6-O. It includes built-in WiFi, Smart Home system, DC Inverter compressor, R-32 refrigerant, activated carbon filter, self-cleaning, Economic mode, Silence mode, and Golden Fin protection.

Recommended application

With a nominal cooling capacity of 3.52 kW, this unit is suitable for rooms of approximately 20 to 35 m², as a guideline only. The actual area will depend on insulation, sun exposure, ceiling height, ventilation, number of occupants, and internal heat loads in the home or premises.

Breezeless comfort without annoying drafts

The main advantage of the Breezeless E range is the way it delivers air. Instead of generating a direct blast onto the user, the unit softens the air outlet and distributes it more evenly throughout the room. This is especially useful in bedrooms, rest areas, living rooms, and spaces where acoustic and thermal comfort are a priority.

• Breezeless technology for a softer air sensation.
• Uniform air distribution.
• Less exposure to direct drafts.
• Quiet operation from 20 dB(A).
• Silence mode to reduce acoustic impact.

WiFi and Smart Home control

Built-in WiFi allows the air conditioner to be controlled from the compatible Midea Smart Home app. This means the user can adjust the temperature, select the operating mode, or schedule the unit from a mobile phone, adding convenience and control to everyday use.

• Built-in WiFi as standard.
• Remote control from smartphone.
• Compatibility with Smart Home environments.
• Economic mode to optimize consumption.
• Vane memory.
• LED display.
• Emergency operation.
• Standby consumption of 1 W.

Air quality and unit protection

In addition to climate control, the Midea Breezeless E includes features designed to improve maintenance and air quality. The activated carbon filter helps reduce odors and airborne pollutants, while the self-cleaning function helps keep the indoor heat exchanger in better condition.

• Activated carbon filter.
• Self-cleaning.
• Leak detection.
• Golden Fin to improve heat exchanger resistance.
• Prime Guard.
• DC Inverter compressor.
• DC Inverter outdoor fan.
• Replace technology.

Set technical data

• Commercial model: Breezeless E 35(12)N8.
• Official set code: 13950386.
• Nominal cooling capacity: 3.52 kW.
• Cooling capacity range: 1.38 - 4.31 kW.
• Nominal heating capacity: 3.81 kW.
• Heating capacity range: 1.09 - 4.40 kW.
• Nominal heating capacity at -7 ºC: 3.27 kW.
• Nominal cooling input power: 1110 W.
• Cooling input power range: 120 - 1650 W.
• Nominal heating input power: 1020 W.
• Heating input power range: 110 - 1400 W.
• Nominal heating input power at -7 ºC: 1199 W.
• EER: 3.17.
• COP: 3.73.
• COP at -7 ºC: 2.73.
• SEER: 7.10.
• SCOP: 4.20.
• Refrigerant: R-32.
• GWP: 675.

Indoor unit CB1-12 HRFN8-I

• Official indoor unit equivalent in datasheet: MCB1-12N8.
• Indoor unit code: 13915203.
• Power supply: with communication.
• Communication wiring: (4+T) x 1.5 mm².
• Net dimensions: 812 x 299 x 199 mm.
• Net weight: 9.3 kg.
• Airflow low/medium/high: 380 / 420 / 520 m³/h.
• Sound pressure silent/low/medium/high: 20 / 21 / 35.5 / 37.5 dB(A).
• Sound power level: 56 dB(A).
• Standard included remote control: RG10N8(2Hs)/BGEF.

Outdoor unit EZ-12RD6-O

• Official outdoor unit equivalent in datasheet: MOM-12NXD0.
• Outdoor unit code: 13915204.
• Compressor type: rotary.
• Power supply: 220-240 V / 1 / 50 Hz.
• Power wiring: (2+T) x 2.5 mm².
• Maximum current: 8.2 A.
• Recommended circuit breaker: D16.
• Net dimensions: 720 x 495 x 270 mm.
• Net weight: 22.9 kg.
• Airflow: 1850 m³/h.
• Sound pressure: 56 dB(A).
• Sound power level: 63 dB(A).
• Factory refrigerant charge: 0.62 kg.
• CO₂ equivalent: 0.42 t.
• Included precharge: 5 m.
• Additional charge: 0.012 kg/m.
• Gas pipe diameter: 3/8".
• Liquid pipe diameter: 1/4".
• Maximum total/vertical piping length: 25 / 10 m.
• Outdoor temperature range in heating: -20 ºC to 24 ºC.
• Outdoor temperature range in cooling: -15 ºC to 50 ºC.

Main advantages

The Midea Breezeless E 3.5 kW stands out for combining balanced power, low noise level, WiFi connectivity, and a more comfortable air delivery. It is a recommended option for those who want to climate-control a main room without the sensation of direct airflow, while maintaining good seasonal performance in both cooling and heating.
