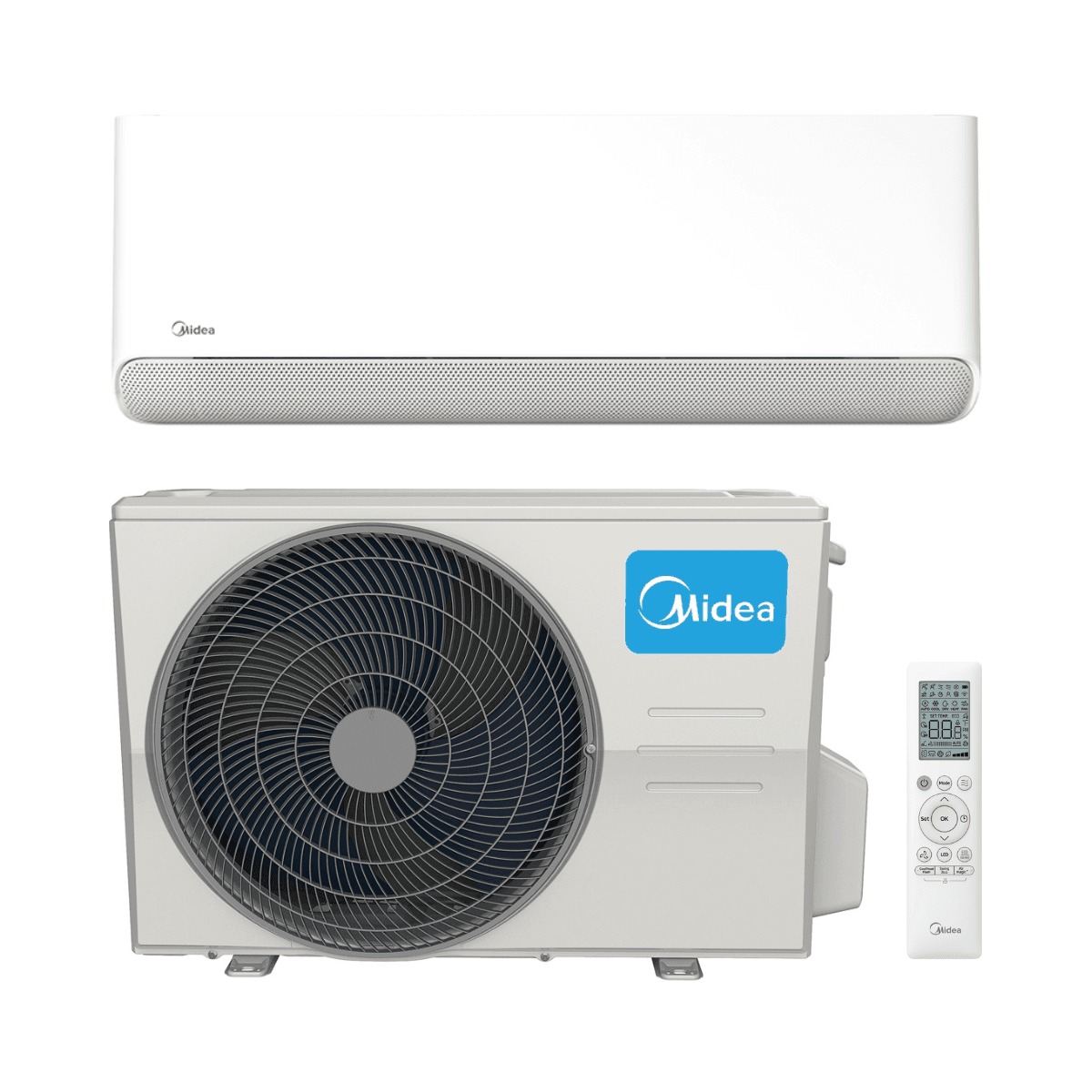

Midea i-Cube Breezeless E 2.6 kW 9000 BTU Air Conditioner with WiFi

The Midea i-Cube Breezeless E 2.6 kW is a wall-mounted split air conditioner designed to deliver more pleasant everyday comfort, especially in bedrooms, offices, and small to medium-sized rooms. Its Breezeless technology helps distribute air smoothly and evenly, reducing the direct draft sensation common in other units.

This set consists of the indoor unit CB1-09 HRFN8-I and the outdoor unit EZ-09RD6-O, with operation using R-32 refrigerant, DC Inverter compressor, and built-in WiFi connectivity for control from the compatible Midea Smart Home app. It is a practical solution for those looking for efficient, quiet air conditioning with advanced comfort features.

Recommended application

With a nominal cooling capacity of 2.63 kW, this unit is suitable for rooms of approximately 10 to 25 m², depending on insulation, orientation, ceiling height, sun exposure, number of occupants, and internal heat loads. It is an especially interesting option for bedrooms, youth rooms, small living rooms, offices, or remote work areas.

Breezeless technology for greater comfort

The Breezeless E range is designed to avoid direct cold air blasts. Its diffusion system softens the airflow to create a more natural and comfortable feeling, helping maintain a pleasant temperature without discomfort for the user.

• Softer, more enveloping air distribution.
• Less direct draft sensation.
• Greater comfort in bedrooms and rest areas.
• Quiet operation from 19.5 dB(A) in the indoor unit.

WiFi control and smart functions

The unit includes WiFi and Smart Home compatibility, allowing you to control the air conditioning from your mobile phone. From the app, you can adjust the temperature, select operating modes, and manage the unit conveniently even when away from home.

• Built-in WiFi.
• Control via the Midea Smart Home app.
• Economic mode to reduce consumption during extended use.
• Silence mode for quieter operation.
• Vane memory to restore the selected position.
• Integrated LED display.
• Emergency operation function.
• Standby consumption of 1 W.

Air quality and maintenance

The Midea Breezeless E integrates functions aimed at improving unit maintenance and the quality of the supplied air. Its activated carbon filter helps reduce odors and environmental pollutants, while the self-cleaning function helps keep the indoor heat exchanger in better condition.

• Activated carbon filter.
• Self-cleaning function.
• Refrigerant leak detection.
• Golden Fin to improve heat exchanger protection.
• Prime Guard for additional unit protection.
• Replace technology to facilitate replacements in compatible existing installations.

Technical data of the set

• Commercial model: Breezeless E 26(09)N8.
• Official set code: 13950385.
• Nominal cooling capacity: 2.63 kW.
• Cooling capacity range: 1.03 - 3.22 kW.
• Nominal heating capacity: 2.93 kW.
• Heating capacity range: 0.82 - 3.37 kW.
• Nominal heating capacity at -7 ºC: 3.27 kW.
• Nominal cooling input: 770 W.
• Cooling input range: 80 - 1300 W.
• Nominal heating input: 690 W.
• Heating input range: 100 - 1250 W.
• Nominal heating input at -7 ºC: 1199 W.
• EER: 3.41.
• COP: 4.24.
• COP at -7 ºC: 2.73.
• SEER: 7.60.
• SCOP: 4.10.
• Refrigerant: R-32.
• GWP: 675.

Indoor unit CB1-09 HRFN8-I

• Official equivalent indoor unit in the datasheet: MCB1-09N8.
• Indoor unit code: 13915201.
• Power supply: with communication.
• Communication wiring: (4+T) x 1.5 mm².
• Net dimensions: 812 x 299 x 199 mm.
• Net weight: 9.1 kg.
• Airflow low/medium/high: 375 / 415 / 510 m³/h.
• Sound pressure silent/low/medium/high: 19.5 / 20.5 / 32 / 37 dB(A).
• Sound power level: 53 dB(A).
• Standard included remote control: RG10N8(2Hs)/BGEF.

Outdoor unit EZ-09RD6-O

• Official equivalent outdoor unit in the datasheet: MOM-09NXD0.
• Outdoor unit code: 13915202.
• Compressor type: rotary.
• Power supply: 220-240 V / 1 / 50 Hz.
• Power wiring: (2+T) x 2.5 mm².
• Maximum current: 8.2 A.
• Recommended circuit breaker: D16.
• Net dimensions: 720 x 495 x 270 mm.
• Net weight: 22.7 kg.
• Airflow: 1850 m³/h.
• Sound pressure: 55.5 dB(A).
• Sound power level: 62 dB(A).
• Factory refrigerant charge: 0.55 kg.
• CO₂ equivalent: 0.37 t.
• Included precharge: 5 m.
• Additional charge: 0.012 kg/m.
• Gas pipe diameter: 3/8".
• Liquid pipe diameter: 1/4".
• Maximum total/vertical piping length: 25 / 10 m.
• Outdoor temperature range in heating: -20 ºC to 24 ºC.
• Outdoor temperature range in cooling: -15 ºC to 50 ºC.

Main advantages

This unit is a balanced solution for those looking for an efficient, quiet, and comfortable split air conditioner for everyday use. The combination of Breezeless technology, built-in WiFi, R-32 refrigerant, activated carbon filter, and self-cleaning makes it a very complete option for improving comfort in small rooms without giving up low consumption and easy installation.
