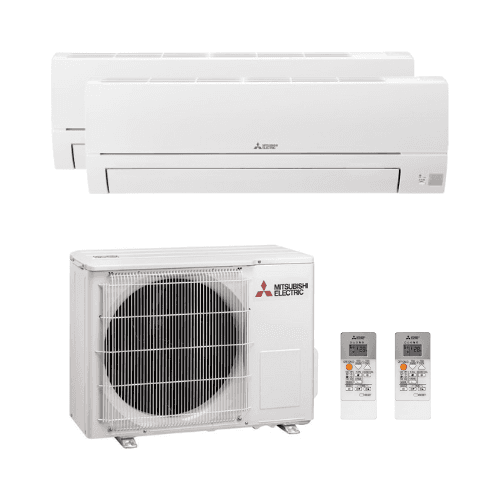

2x1 Air Conditioner with WiFi Mitsubishi MXZ HR 2.5 kW + 3.5 kW

The Mitsubishi Electric MXZ HR 2x1 multisplit air conditioner allows you to climate control two rooms with different thermal needs using a single outdoor unit. It combines one MSZ-HR25VFK indoor unit with 2.5 kW and another MSZ-HR35VFK indoor unit with 3.5 kW, both featuring integrated WiFi connectivity and independent control via the MELCloud app. Its inverter technology optimizes energy consumption and ensures quiet, long-lasting operation.

Technical Specifications

• Combination: 1 × MSZ-HR25VFK/U + 1 × MSZ-HR35VFK/U + 1 × MXZ-2HA50VF
• Total cooling capacity: 5.0 kW (17000 BTU)
• Total heating capacity: 6.0 kW
• SEER: 6.6
• SCOP: 4.3
• EER: 3.25
• COP: 3.82
• Refrigerant: R32
• Indoor unit noise level: from 21 dB(A)
• Outdoor unit noise level: 48 dB(A)
• Connectivity: Integrated WiFi (MELCloud)
• Refrigerant connections: 2 × 1/4” (Ø6.35 mm) – 2 × 3/8” (Ø9.52 mm)

Set Composition

• 1 × MSZ-HR25VFK/U indoor unit (2.5 kW)
• 1 × MSZ-HR35VFK/U indoor unit (3.5 kW)
• 1 × MXZ-2HA50VF outdoor unit
• 2 × Infrared remote controls

Installation and Maintenance

The system is delivered without additional installation materials. Each indoor unit has an independent refrigerant connection of 1/4” and 3/8”. Front access to filters and components makes maintenance and cleaning tasks easy. Ideal for homes or offices with two areas of different sizes.

Dimensions and Weight

• MSZ-HR25VFK/U indoor unit: 280 × 838 × 228 mm – 8.5 kg
• MSZ-HR35VFK/U indoor unit: 280 × 838 × 228 mm – 8.5 kg
• MXZ-2HA50VF outdoor unit: 710 × 800 × 285 mm – 53 kg

Recommended Applications

Perfect for homes, apartments, or small offices where you need to climate control two rooms with different thermal loads using a single efficient, quiet, and WiFi-controlled multisplit system.
