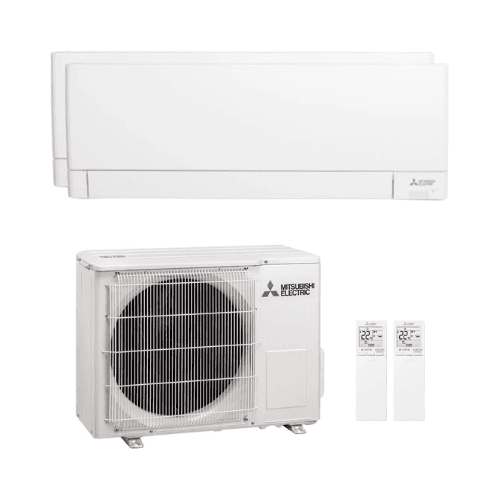

2x1 Air Conditioner with WiFi Mitsubishi MSZ-AY 3.5 kW 12000 BTU

• 2 x Indoor unit MSZ-AY35VGK/U (3.5 kW – 12,000 BTU)
• 1 x Outdoor multisplit unit MXZ-2F53VF (R32)

This 2x1 system allows you to independently climate control two rooms, optimizing energy consumption according to the real demand of each area. It is an efficient and flexible solution for homes, offices, or separate zones within the same property.

MSZ-AY35VGK/U Indoor Units

• Nominal power: 3.5 kW
• Airflow (Silent/Low/Medium/High/Max): 4.9 / 5.9 / 7.1 / 8.7 / 11.4 m³/min
• Sound level (Silent/Low/Medium/High/Max): 18 / 24 / 30 / 36 / 42 dB(A)
• Sound power: 57 dB(A)
• Dimensions (H x W x D): 299 x 798 x 245 mm
• Weight: 10.5 kg

Compact and elegant design, with full horizontal and vertical louver control from the remote for even air distribution. Built-in WiFi for remote control and advanced scheduling.

MXZ-2F53VF Outdoor Multisplit Unit

• Maximum number of indoor units: 2
• Nominal cooling capacity (min-max): 5.3 kW (1.1 – 5.6 kW)
• Nominal heating capacity (min-max): 6.4 kW (1.0 – 7.0 kW)
• Nominal consumption: 1.40 kW (cooling) / 1.56 kW (heating)
• SEER: 8.63 (A+++)
• SCOP: 4.60 (A++)
• Airflow: 32.7 m³/min
• Sound level: 46 dB(A)
• Sound power: 61 dB(A)
• Dimensions (H x W x D): 550 x 800(+69) x 285(+59.5) mm
• Weight: 37 kg
• Refrigerant: R32 (pre-charged 1.2 kg)
• Power supply: 230 V / 1 Phase – Max current 12.2 A
• Piping diameter: 6.35 x2 mm (liquid) / 9.52 x2 mm (gas)
• Total maximum pipe length: 30 m
• Maximum length per indoor unit: 20 m
• Operating range: -10 ~ +46 ºC (cooling) / -15 ~ +24 ºC (heating)

Technical data according to official MXZ-2F53VF datasheet.

Energy Efficiency and Seasonal Performance

The combination of Inverter technology and R32 refrigerant achieves seasonal efficiency ratings of A+++ for cooling and A++ for heating, ensuring optimized consumption all year round.

Air Quality with V-Blocking Filter

MSZ-AY units come standard with a V-Blocking filter with antiviral effect, capable of inhibiting up to 99% of viruses, bacteria, mold, and attached allergens. Its double-layer structure (fiber and electrostatic) captures airborne particles and improves indoor air quality.

Recommended Room Size

• 3.5 kW units: recommended for rooms of 20–35 m²

Values are indicative and should be confirmed by thermal load calculation according to insulation, orientation, and climate conditions.

Optional Accessories

• MAC-100FT-E Plasma Quad Connect
• MAC-2460FT-E V-Blocking antibacterial and antivirus filter
• MAC-093SS-E Cleaning kit connectable to vacuum cleaner
• MAC-334IF-E M-NET integration interface
