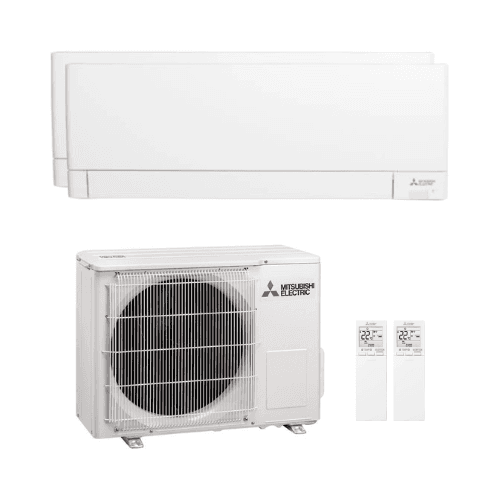

2x1 Air Conditioner with WiFi Mitsubishi MSZ-AY 2.5 kW 9000 BTU

The set includes:

• 2 x Indoor unit MSZ-AY25VGK/U (2.5 kW – 9000 BTU)
• 1 x Outdoor multisplit unit MXZ-2F42VF (R32)

This 2x1 solution allows you to independently climate control two rooms using a single outdoor unit, optimizing facade space and improving the overall energy efficiency of the installation. It is ideal for bedrooms, offices, or small-sized homes.

MSZ-AY25VGK/U Indoor Units

• Nominal power: 2.5 kW
• Airflow (Silent/Low/Medium/High/Max): 4.9 / 5.9 / 7.1 / 8.7 / 11.4 m³/min
• Sound level (Silent/Low/Medium/High/Max): 18 / 24 / 30 / 36 / 42 dB(A)
• Sound power: 57 dB(A)
• Dimensions (H x W x D): 299 x 798 x 245 mm
• Weight: 10.5 kg

The indoor units come with built-in WiFi for remote control and advanced programming. The V-Blocking filtration system with antiviral effect inhibits up to 99% of viruses, bacteria, mold, and adhered allergens. Full horizontal and vertical louver control ensures even air distribution in every room.

MXZ-2F42VF Multisplit Outdoor Unit

• Maximum number of indoor units: 2
• Nominal cooling capacity (min-max): 4.2 kW (1.1 – 4.4 kW)
• Nominal heating capacity (min-max): 4.5 kW (1.0 – 4.8 kW)
• Nominal consumption: 0.98 kW (cooling) / 0.88 kW (heating)
• EER / COP: 4.3 / 5.1
• SEER: 8.69 (A+++)
• SCOP: 4.60 (A++)
• Airflow: 28.4 m³/min
• Sound level: 44 dB(A)
• Sound power: 59 dB(A)
• Dimensions (H x W x D): 550 x 800(+69) x 285(+59.5) mm
• Weight: 37 kg
• Refrigerant: R32
• Gas charge (pre-charge): 1.2 kg
• GWP: 675
• TCO₂ eq: 0.81
• Power supply: 230 V / 1 Phase – Maximum current 12.2 A
• Piping diameter: 6.35 x2 mm (liquid) / 9.52 x2 mm (gas)
• Maximum total pipe length: 30 m
• Maximum length per indoor unit: 20 m
• Operating range: -10 ~ +46 ºC (cooling) / -15 ~ +24 ºC (heating)

Technical data according to official MXZ-2F42VF datasheet.

Energy Efficiency and R32 Technology

The Inverter technology combined with R32 refrigerant allows the system’s power to adapt to the actual demand of each room, optimizing electricity consumption and delivering high seasonal performance.

Recommended Room Size

• 2.5 kW units: recommended for rooms of 10–25 m²

Indicative values that should be confirmed by thermal load calculation according to insulation, orientation, and climatic conditions.

Optional Accessories

• MAC-100FT-E Plasma Quad Connect
• MAC-2460FT-E V-Blocking Filter with antibacterial and antivirus action
• MAC-093SS-E Cleaning kit connectable to vacuum cleaner
• MAC-334IF-E M-NET integration interface
