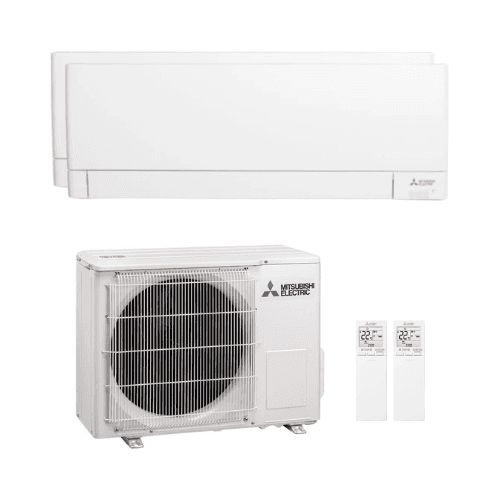

2x1 Air Conditioner with WiFi Mitsubishi MSZ-AY 2.5 kW + 4.2 kW

The set includes:

• 1 x Indoor unit MSZ-AY25VGK/U (2.5 kW – 9000 BTU)
• 1 x Indoor unit MSZ-AY42VGK/U (4.2 kW – approx. 14300 BTU)
• 1 x Outdoor multisplit unit MXZ-3F68VF (R32)

This 2x1 configuration allows you to air-condition two rooms with different thermal needs, combining a 2.5 kW unit ideal for bedrooms or offices and a 4.2 kW unit designed for living rooms or larger spaces. Independent management ensures comfort and energy efficiency in each area.

Indoor unit MSZ-AY25VGK/U (2.5 kW)

• Airflow (Silent/Low/Medium/High/Max): 4.9 / 5.9 / 7.1 / 8.7 / 11.4 m³/min
• Sound level (Silent/Low/Medium/High/Max): 18 / 24 / 30 / 36 / 42 dB(A)
• Sound power: 57 dB(A)
• Dimensions (H x W x D): 299 x 798 x 245 mm
• Weight: 10.5 kg

Indoor unit MSZ-AY42VGK/U (4.2 kW)

• Airflow (Silent/Low/Medium/High/Max): 5.4 / 6.5 / 7.7 / 9.3 / 11.4 m³/min
• Sound level (Silent/Low/Medium/High/Max): 21 / 29 / 34 / 38 / 42 dB(A)
• Sound power: 57 dB(A)
• Dimensions (H x W x D): 299 x 798 x 245 mm
• Weight: 10.5 kg

Both units come with built-in WiFi for remote control and advanced scheduling. The V-Blocking filter with antiviral effect inhibits up to 99% of viruses, bacteria, mold, and attached allergens. Full horizontal and vertical louver control allows for even air distribution.

Outdoor multisplit unit MXZ-3F68VF

• Maximum number of indoor units: 3
• Nominal cooling capacity (min-max): 6.8 kW (2.9 – 8.4 kW)
• Nominal heating capacity (min-max): 8.6 kW (2.6 – 10.6 kW)
• Nominal power consumption: 1.79 kW (cooling) / 1.91 kW (heating)
• SEER: 7.96 (A++)
• SCOP: 4.12 (A+)
• Airflow: 42.1 m³/min
• Sound level: 48 dB(A)
• Sound power: 63 dB(A)
• Dimensions (H x W x D): 710 x 840(+30) x 330(+66) mm
• Weight: 58 kg
• Refrigerant: R32
• Gas charge (pre-charge): 2.4 kg
• GWP: 675
• CO₂ eq: 1.62
• Power supply: 230 V / 1 Phase – Maximum current 18 A
• Piping diameter: 6.35 x3 mm (liquid) / 9.52 x3 mm (gas)
• Maximum total pipe length: 60 m
• Maximum length per indoor unit: 25 m
• Operating range: -10 ~ +46 ºC (cooling) / -15 ~ +24 ºC (heating)

Technical data according to official MXZ-3F68VF datasheet.

Energy efficiency and performance

The combination of Inverter technology and R32 refrigerant allows the system’s power to continuously adapt to the actual thermal load, improving seasonal performance and reducing electricity consumption.

Recommended room size

• 2.5 kW unit: recommended for rooms of 10–25 m²
• 4.2 kW unit: recommended for rooms of 30–45 m²

Values are approximate and should be confirmed by thermal load calculation according to insulation, orientation, and climate conditions.

Optional accessories

• MAC-100FT-E Plasma Quad Connect
• MAC-2460FT-E V-Blocking filter with antibacterial and antivirus action
• MAC-093SS-E Cleaning kit connectable to vacuum cleaner
• MAC-334IF-E M-NET integration interface
