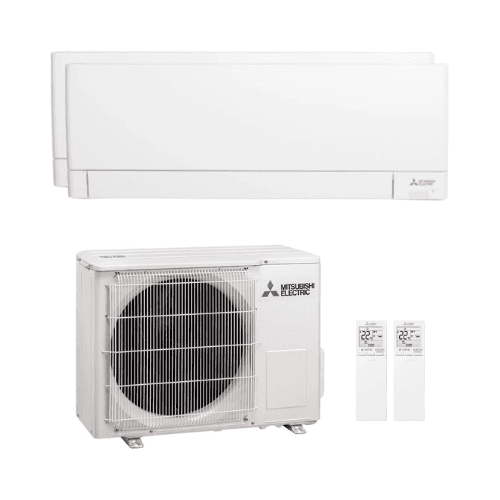

2x1 Air Conditioner with WiFi Mitsubishi MSZ-AY 2.5 kW + 3.5 kW

The set includes:

• 1 x Indoor unit MSZ-AY25VGK/U (2.5 kW – 9000 BTU)
• 1 x Indoor unit MSZ-AY35VGK/U (3.5 kW – 12000 BTU)
• 1 x Outdoor multisplit unit MXZ-2F53VF (R32)

This 2x1 configuration allows you to air-condition two rooms with different thermal needs, combining a 2.5 kW unit ideal for bedrooms or offices and a 3.5 kW unit designed for living rooms or main areas. Independent regulation optimizes energy consumption and enhances comfort in each space.

Indoor unit MSZ-AY25VGK/U (2.5 kW)

• Airflow (Silent/Low/Medium/High/Max): 4.9 / 5.9 / 7.1 / 8.7 / 11.4 m³/min
• Sound level (Silent/Low/Medium/High/Max): 18 / 24 / 30 / 36 / 42 dB(A)
• Sound power: 57 dB(A)
• Dimensions (H x W x D): 299 x 798 x 245 mm
• Weight: 10.5 kg

Indoor unit MSZ-AY35VGK/U (3.5 kW)

• Airflow (Silent/Low/Medium/High/Max): 4.9 / 5.9 / 7.1 / 8.7 / 11.4 m³/min
• Sound level (Silent/Low/Medium/High/Max): 18 / 24 / 30 / 36 / 42 dB(A)
• Sound power: 57 dB(A)
• Dimensions (H x W x D): 299 x 798 x 245 mm
• Weight: 10.5 kg

Both units come with built-in WiFi for remote control and advanced scheduling. The V-Blocking filter with antiviral effect inhibits up to 99% of viruses, bacteria, mold, and attached allergens. Full horizontal and vertical louver control ensures even air distribution.

Outdoor multisplit unit MXZ-2F53VF

• Maximum number of indoor units: 2
• Nominal cooling capacity (min-max): 5.3 kW (1.1 – 5.6 kW)
• Nominal heating capacity (min-max): 6.4 kW (1.0 – 7.0 kW)
• Nominal power consumption: 1.40 kW (cooling) / 1.56 kW (heating)
• EER / COP: 3.90 / 4.10
• SEER: 8.63 (A+++)
• SCOP: 4.60 (A++)
• Airflow: 32.7 m³/min
• Sound level: 46 dB(A)
• Sound power: 61 dB(A)
• Dimensions (H x W x D): 550 x 800(+69) x 285(+59.5) mm
• Weight: 37 kg
• Refrigerant: R32
• Gas charge (pre-charge): 1.2 kg
• GWP: 675
• TCO₂ eq: 0.81
• Power supply: 230 V / 1 Phase – Maximum current 12.2 A
• Piping diameter: 6.35 x2 mm (liquid) / 9.52 x2 mm (gas)
• Maximum total piping length: 30 m
• Maximum length per indoor unit: 20 m
• Operating range: -10 ~ +46 ºC (cooling) / -15 ~ +24 ºC (heating)

Technical data according to official MXZ-2F53VF datasheet.

Energy efficiency and R32 technology

Thanks to Inverter technology and R32 refrigerant, the system adapts compressor power to actual demand, improving seasonal performance and reducing annual electricity consumption.

Recommended room size

• 2.5 kW unit: recommended for rooms of 10–25 m²
• 3.5 kW unit: recommended for rooms of 20–35 m²

Indicative values that should be confirmed by thermal load calculation according to insulation, orientation, and climatic conditions.

Optional accessories

• MAC-100FT-E Plasma Quad Connect
• MAC-2460FT-E V-Blocking filter with antibacterial and antivirus action
• MAC-093SS-E Cleaning kit connectable to vacuum cleaner
• MAC-334IF-E M-NET integration interface
